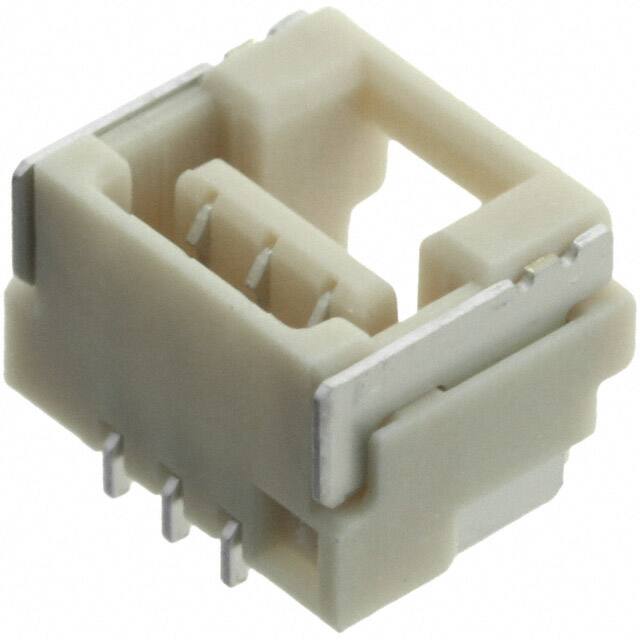

5023860370

Specifications

Reference Standard

UL

Body Length Or Diameter

0.28 inch

Number Of Conductors

ONE

Mixed Contacts

NO

Dielectric Withstanding Voltage

700VAC V

RoHS Durumu

ROHS3 Compliant

Nominal Gerilim

50V

Insulation Materials

Resin

Applications

Automotive, General Purpose, Industrial, Lighting, Medical

Reliability

COMMERCIAL

Number Of Pcb Rows

1

Pozisyon Sayısı

3

Ul Flammability Code

94V-0

JESD-609 Kodu

e3

Fastening Type

Latch Holder

Filter Feature

NO

Özellikler

Solder Retention

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Finish Thickness Mating

39.4μin 1.00μm

Mil Conformance

NO

Contact Finish Mating

Tin

Çalışma Sıcaklığı

-40°C~105°C

Contact Gender

FEMALE

ECCN Kodu

EAR99

Mating Contact Pitch

0.049 inch

Insulation Height

0.215 5.45mm

Current Rating Amps

1A

Contact Materials

Copper Alloy

Additional Feature

CLIK-MATE, POLARIZED

Sıra Sayısı

1

Number Of Positions Loaded

All

Contact Type

Forked

Pitch Mating

0.049 1.25mm

Parça Durumu

Active

Pcb Contact Pattern

RECTANGULAR

Fabrika Tedarik Süresi

10 Weeks

Style

Board to Cable/Wire

Yayın Yılı

2010

Material Flammability Rating

UL94 V-0

Connector Type

Receptacle
