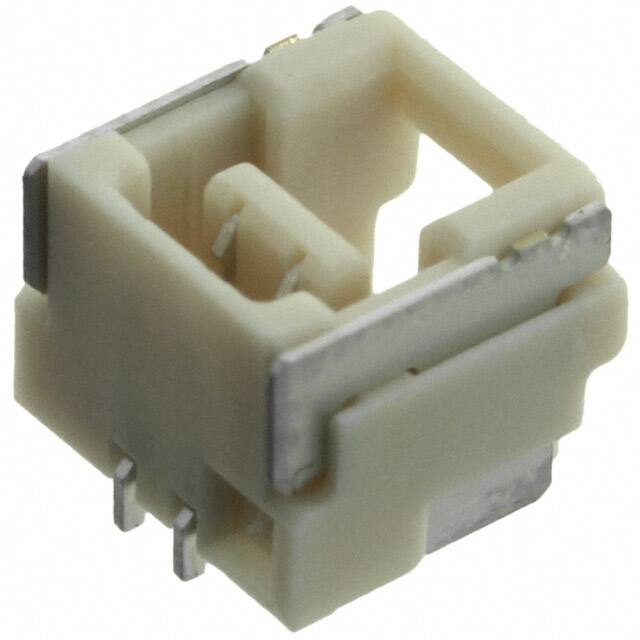

5023860270

Specifications

Applications

Automotive, General Purpose, Industrial, Lighting, Medical

Insulation Materials

Resin

Mixed Contacts

NO

Number Of Conductors

ONE

RoHS Durumu

ROHS3 Compliant

Nominal Gerilim

50V

Dielectric Withstanding Voltage

700VAC V

Reference Standard

UL

Filter Feature

NO

Fastening Type

Latch Holder

Nem Hassasiyeti (MSL)

1 (Unlimited)

Özellikler

Solder Retention

Mil Conformance

NO

Contact Finish Thickness Mating

39.4μin 1.00μm

Contact Gender

FEMALE

Çalışma Sıcaklığı

-40°C~105°C

Contact Finish Mating

Tin

Ul Flammability Code

94V-0

JESD-609 Kodu

e3

Reliability

COMMERCIAL

Number Of Pcb Rows

1

Pozisyon Sayısı

2

Yayın Yılı

2010

Style

Board to Cable/Wire

Fabrika Tedarik Süresi

20 Weeks

Material Flammability Rating

UL94 V-0

Pitch Mating

0.049 1.25mm

Pcb Contact Pattern

RECTANGULAR

Parça Durumu

Active

Contact Materials

Copper Alloy

Current Rating Amps

1A

Additional Feature

ROHS COMPLIANT

Contact Type

Forked

Number Of Positions Loaded

All

Sıra Sayısı

1

Insulation Height

0.215 5.45mm

Mating Contact Pitch

0.049 inch

Contact Finish Thickness Post

39.4μin 1.00μm

Mounting Option1

LOCKING

Insulation Color

Natural
