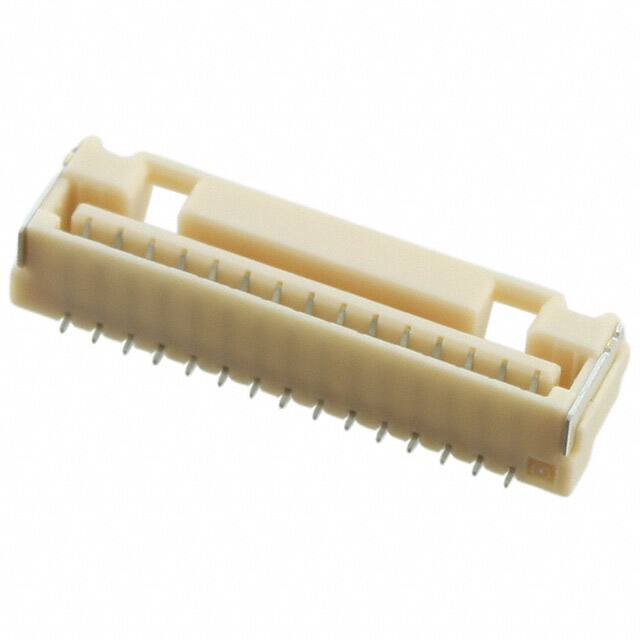

5023821572

Specifications

Contact Finish Thickness Post

39.4μin 1.00μm

Contact Resistance

20mOhm

Mounting Option1

LOCKING

Insulation Color

Natural

Ambalaj

Tape & Reel (TR)

Total Number Of Contacts

15

Montaj Tipi

Surface Mount

Din Conformance

NO

Iec Conformance

NO

Connector Type

Receptacle

Terminal

Solder

Seri

CLIK-Mate 502382

Style

Board to Cable/Wire

Fabrika Tedarik Süresi

19 Weeks

Yayın Yılı

2013

Material Flammability Rating

UL94 V-0

Pitch Mating

0.049 1.25mm

Parça Durumu

Active

Pcb Contact Pattern

RECTANGULAR

Current Rating Amps

1A

Contact Materials

Copper Alloy

Sıra Sayısı

1

Number Of Positions Loaded

All

Contact Type

Forked

Mating Contact Pitch

0.049 inch

Insulation Height

0.173 4.40mm

Fastening Type

Latch Holder

Filter Feature

NO

Nem Hassasiyeti (MSL)

1 (Unlimited)

Özellikler

Pick and Place, Solder Retention

Contact Finish Thickness Mating

39.4μin 1.00μm

Mil Conformance

NO

Çalışma Sıcaklığı

-40°C~105°C

Contact Finish Mating

Tin

Contact Gender

FEMALE

Ul Flammability Code

94V-0

Reliability

COMMERCIAL

Number Of Pcb Rows

1

Pozisyon Sayısı

15

Polarization Key

POLARIZED HOUSING
