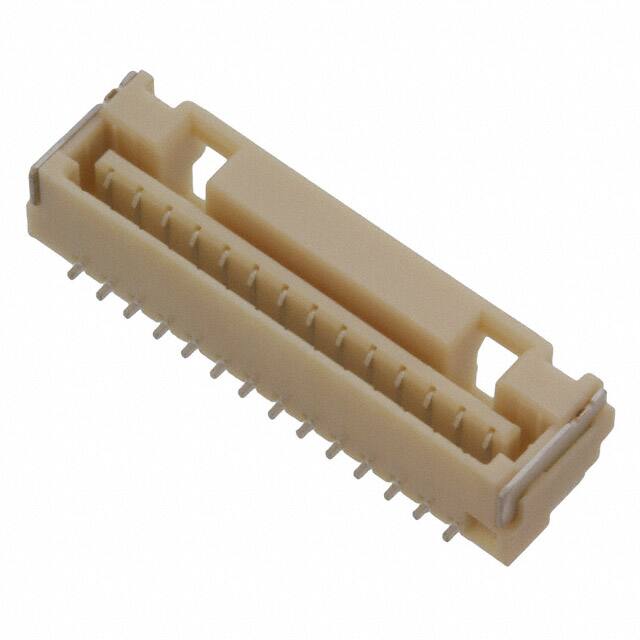

5023821472

Specifications

Fabrika Tedarik Süresi

20 Weeks

Style

Board to Cable/Wire

Yayın Yılı

2013

Material Flammability Rating

UL94 V-0

Pitch Mating

0.049 1.25mm

Parça Durumu

Active

Pcb Contact Pattern

RECTANGULAR

Current Rating Amps

1A

Contact Materials

Copper Alloy

Sıra Sayısı

1

Number Of Positions Loaded

All

Contact Type

Forked

Mating Contact Pitch

0.049 inch

Insulation Height

0.173 4.40mm

Contact Finish Thickness Post

39.4μin 1.00μm

Contact Resistance

20mOhm

Mounting Option1

LOCKING

Insulation Color

Natural

Ambalaj

Tape & Reel (TR)

Total Number Of Contacts

14

Montaj Tipi

Surface Mount

Din Conformance

NO

Iec Conformance

NO

Connector Type

Receptacle

Terminal

Solder

Seri

CLIK-Mate 502382

Polarization Key

POLARIZED HOUSING

Applications

Automotive, General Purpose, Industrial, Lighting, Medical

Plating Thickness

39μin

Insulation Materials

Resin

Number Of Conductors

ONE

Mixed Contacts

NO

Dielectric Withstanding Voltage

700VAC V

Nominal Gerilim

50V

RoHS Durumu

ROHS3 Compliant

Reference Standard

UL

Durability

30 Cycles

Fastening Type

Latch Holder

Filter Feature

NO

Nem Hassasiyeti (MSL)

1 (Unlimited)
