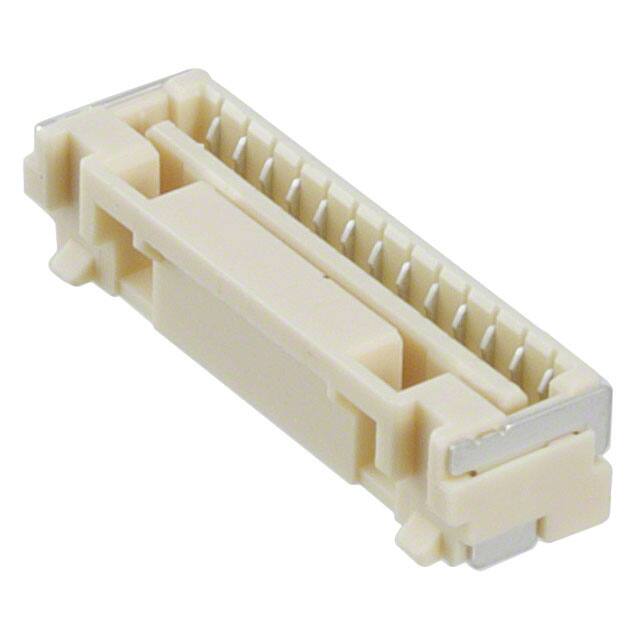

5023821370

Specifications

Çalışma Sıcaklığı

-40°C~105°C

Contact Finish Mating

Tin

Contact Gender

FEMALE

Glow Wire Compliant

Non-compliant

Contact Finish Thickness Mating

39.4μin 1.00μm

Mil Conformance

NO

Nem Hassasiyeti (MSL)

1 (Unlimited)

Özellikler

Solder Retention

Fastening Type

Latch Holder

Filter Feature

NO

Number Of Pcb Rows

1

Reliability

COMMERCIAL

Radyasyon Dayanımı

No

JESD-609 Kodu

e3

Ul Flammability Code

94V-0

Rated Current Signal

1A

Uzunluk

19.6mm

Insulation Materials

Resin

Plating Thickness

39μin

Applications

Automotive, General Purpose, Industrial, Lighting, Medical

Polarization Key

POLARIZED HOUSING

Orientation

Vertical

Max Voltage Rating Ac

50V

HTS Kodu

8536.69.40.40

Akım Değeri

1A

Durability

30 Cycles

Reach Svhc

No SVHC

Reference Standard

UL

Dielectric Withstanding Voltage

700VAC V

RoHS Durumu

ROHS3 Compliant

Mixed Contacts

NO

Number Of Conductors

ONE

Max Voltage Rating Dc

5.05kV

Ambalaj

Tape & Reel (TR)

Kurşunsuz Kodu

yes

Voltage Rated Ac

50V

Housing Color

Natural

Depth

5.45mm

Contact Resistance

20mOhm

Housing Material

Thermoplastic
