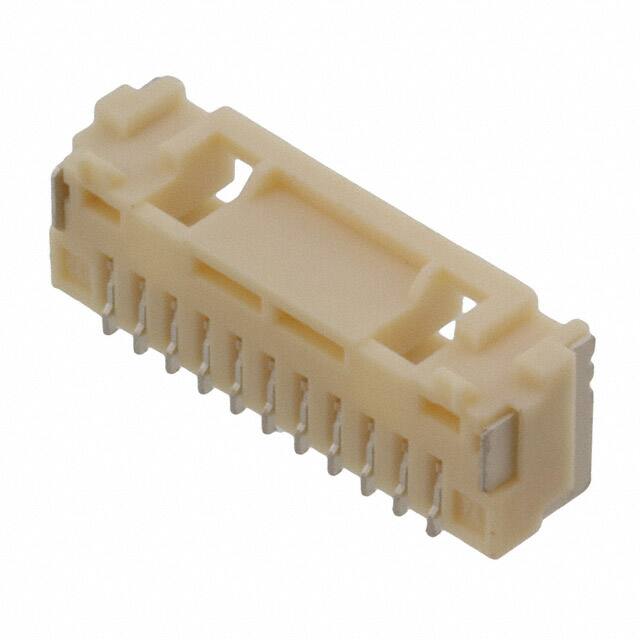

5023821170

Specifications

Nem Hassasiyeti (MSL)

1 (Unlimited)

Özellikler

Solder Retention

Fastening Type

Latch Holder

Filter Feature

NO

Çalışma Sıcaklığı

-40°C~105°C

Contact Finish Mating

Tin

Contact Gender

FEMALE

Contact Finish Thickness Mating

39.4μin 1.00μm

Mil Conformance

NO

Reliability

COMMERCIAL

Pozisyon Sayısı

11

Number Of Pcb Rows

1

Ul Flammability Code

94V-0

JESD-609 Kodu

e3

Insulation Materials

Resin

Plating Thickness

39μin

Applications

Automotive, General Purpose, Industrial, Lighting, Medical

Polarization Key

POLARIZED HOUSING

Reference Standard

UL

Durability

30 Cycles

Number Of Conductors

ONE

Mixed Contacts

NO

Dielectric Withstanding Voltage

700VAC V

Nominal Gerilim

50V

RoHS Durumu

ROHS3 Compliant

Insulation Color

Natural

Ambalaj

Tape & Reel (TR)

Kurşunsuz Kodu

yes

Total Number Of Contacts

11

Contact Finish Thickness Post

39.4μin 1.00μm

Contact Resistance

20mOhm

Mounting Option1

LOCKING

Connector Type

Receptacle

Terminal

Solder

Seri

CLIK-Mate 502382

Montaj Tipi

Surface Mount

Din Conformance

NO

Iec Conformance

NO

Pitch Mating

0.049 1.25mm

Parça Durumu

Active
