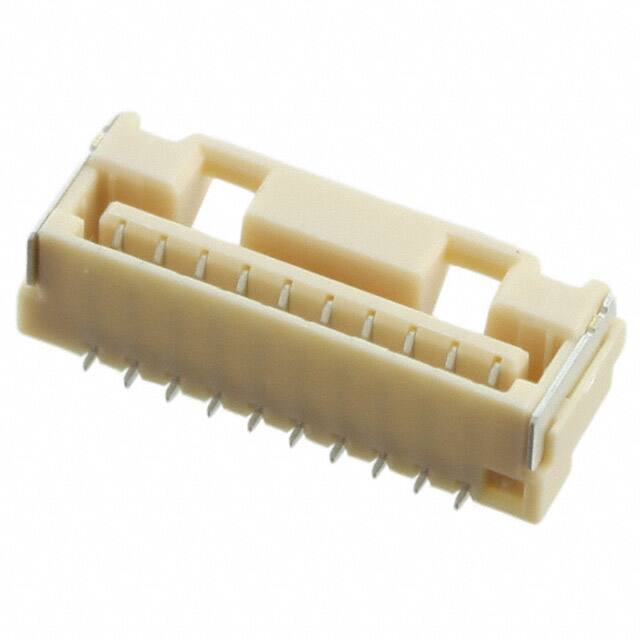

5023821070

Specifications

Insulation Materials

Resin

Plating Thickness

39μin

HTS Kodu

8536.69.40.40

Applications

Automotive, General Purpose, Industrial, Lighting, Medical

Polarization Key

POLARIZED HOUSING

Reference Standard

UL

Durability

30 Cycles

Mixed Contacts

NO

Number Of Conductors

ONE

Dielectric Withstanding Voltage

700VAC V

Nominal Gerilim

50V

RoHS Durumu

ROHS3 Compliant

Özellikler

Solder Retention

Nem Hassasiyeti (MSL)

1 (Unlimited)

Fastening Type

Latch Holder

Filter Feature

NO

Contact Finish Mating

Tin

Çalışma Sıcaklığı

-40°C~105°C

Contact Gender

FEMALE

Contact Finish Thickness Mating

39.4μin 1.00μm

Mil Conformance

NO

Reliability

COMMERCIAL

Pozisyon Sayısı

10

Number Of Pcb Rows

1

JESD-609 Kodu

e3

Ul Flammability Code

94V-0

Pitch Mating

0.049 1.25mm

Parça Durumu

Active

Pcb Contact Pattern

RECTANGULAR

Fabrika Tedarik Süresi

11 Weeks

Style

Board to Cable/Wire

Yayın Yılı

2010

Material Flammability Rating

UL94 V-0

Mating Contact Pitch

0.049 inch

Insulation Height

0.173 4.40mm

ECCN Kodu

EAR99

Additional Feature

ROHS COMPLIANT, TAPE AND REEL

Current Rating Amps

1A

Contact Materials

Copper Alloy

Sıra Sayısı

1
