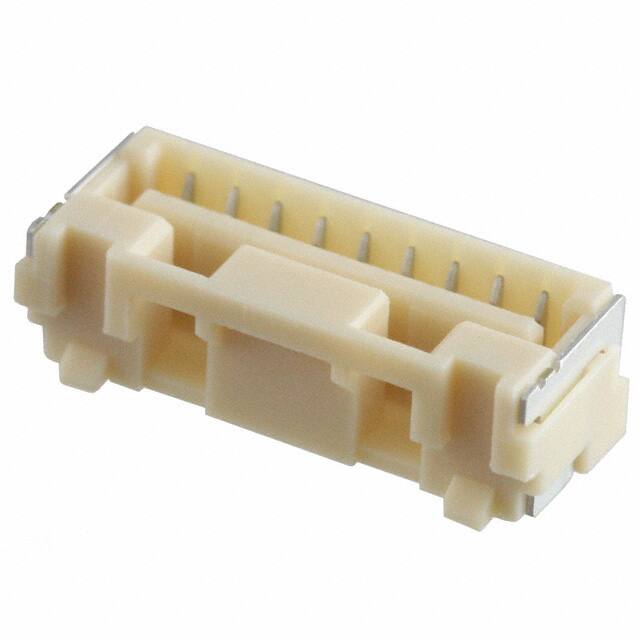

5023820970

Specifications

Material Flammability Rating

UL94 V-0

Fabrika Tedarik Süresi

20 Weeks

Style

Board to Cable/Wire

Yayın Yılı

2015

Parça Durumu

Active

Pcb Contact Pattern

RECTANGULAR

Pitch Mating

0.049 1.25mm

Number Of Circuits

8

Sıra Sayısı

1

Number Of Positions Loaded

All

Contact Type

Forked

Contact Materials

Copper Alloy

Additional Feature

ROHS COMPLIANT, TAPE AND REEL

Insulation Height

0.173 4.40mm

Contact Resistance

20mOhm

Mounting Option1

LOCKING

Contact Finish Thickness Post

39.4μin 1.00μm

Ambalaj

Tape & Reel (TR)

Kurşunsuz Kodu

yes

Total Number Of Contacts

9

Insulation Color

Natural

Iec Conformance

NO

Montaj Tipi

Surface Mount

Din Conformance

NO

Seri

CLIK-Mate 502382

Terminal

Solder

Connector Type

Receptacle

Polarization Key

POLARIZED HOUSING

Applications

Automotive, General Purpose, Industrial, Lighting, Medical

Akım Değeri

1A

Orientation

Vertical

Insulation Materials

Resin

Dielectric Withstanding Voltage

700VAC V

RoHS Durumu

ROHS3 Compliant

Nominal Gerilim

50V

Number Of Conductors

ONE

Mixed Contacts

NO

Durability

30 Cycles

Reference Standard

UL

Contact Finish Thickness Mating

39.4μin 1.00μm
