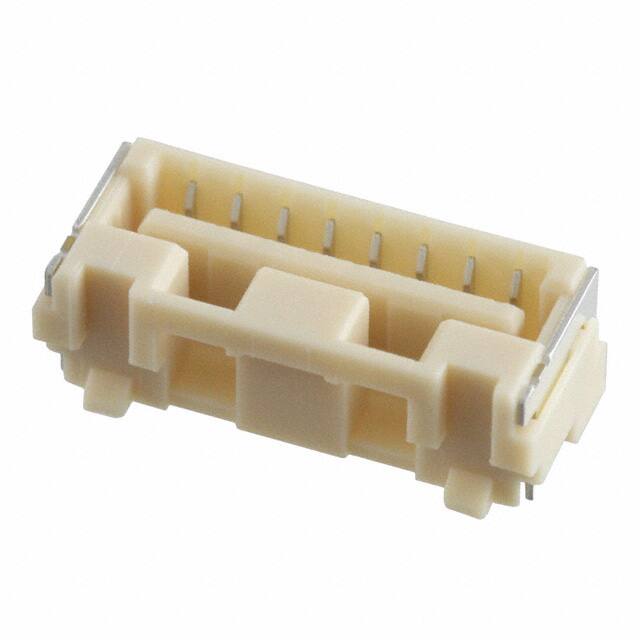

5023820870

Specifications

Current Rating Amps

1A

Contact Materials

Copper Alloy

Additional Feature

CLIK-MATE, POLARIZED

Sıra Sayısı

1

Number Of Positions Loaded

All

Contact Type

Forked

ECCN Kodu

EAR99

Mating Contact Pitch

0.049 inch

Insulation Height

0.173 4.40mm

Yayın Yılı

2010

Fabrika Tedarik Süresi

20 Weeks

Style

Board to Cable/Wire

Material Flammability Rating

UL94 V-0

Pitch Mating

0.049 1.25mm

Parça Durumu

Active

Pcb Contact Pattern

RECTANGULAR

Montaj Tipi

Surface Mount

Din Conformance

NO

Iec Conformance

NO

Terminal

Solder

Connector Type

Receptacle

Seri

CLIK-Mate 502382

Contact Finish Thickness Post

39.4μin 1.00μm

Contact Resistance

20mOhm

Mounting Option1

LOCKING

Insulation Color

Natural

Ambalaj

Tape & Reel (TR)

Kurşunsuz Kodu

yes

Total Number Of Contacts

8

Mixed Contacts

NO

Number Of Conductors

ONE

Dielectric Withstanding Voltage

700VAC V

RoHS Durumu

ROHS3 Compliant

Nominal Gerilim

50V

Reference Standard

UL

Durability

30 Cycles

Polarization Key

POLARIZED HOUSING

Applications

Automotive, General Purpose, Industrial, Lighting, Medical

Plating Thickness

39μin

Insulation Materials

Resin
