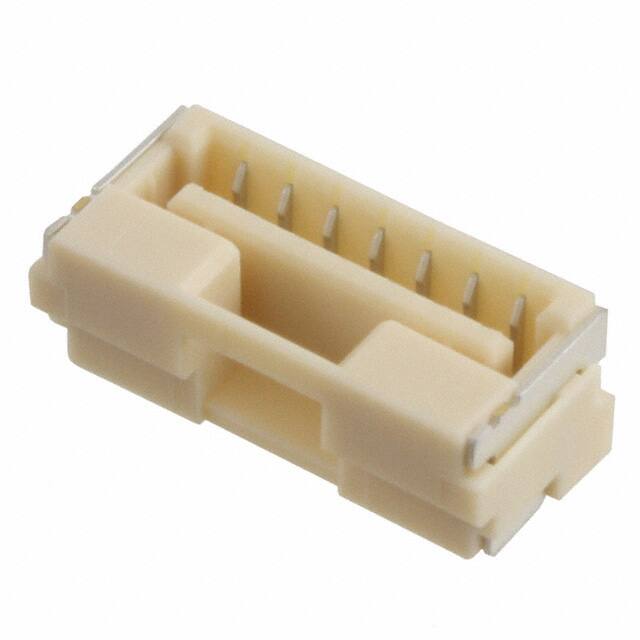

5023820772

Specifications

REACH Uyumluluk Kodu

unknown

Montaj Tipi

Surface Mount

Pozisyon Sayısı

7

Seri

CLIK-Mate 502382

Montaj

Surface Mount

Terminal

Solder

Connector Type

Receptacle

Housing Color

Natural

Depth

5.45mm

Contact Resistance

20mOhm

Contact Finish Thickness Post

39.4μin 1.00μm

Housing Material

Thermoplastic

Contact Finish Mating

Tin

Çalışma Sıcaklığı

-40°C~105°C

Ambalaj

Tape & Reel (TR)

Contact Finish Thickness Mating

39.4μin 1.00μm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Özellikler

Pick and Place, Solder Retention

Fastening Type

Latch Holder

RoHS Durumu

ROHS3 Compliant

Contact Type

Forked

Sıra Sayısı

1

Number Of Positions Loaded

All

Contact Materials

Copper Alloy

Current Rating Amps

1A

Insulation Height

0.173 4.40mm

Applications

Automotive, General Purpose, Industrial, Lighting, Medical

Material Flammability Rating

UL94 V-0

Max Voltage Rating Ac

50V

Orientation

Straight

Style

Board to Cable/Wire

Yayın Yılı

2015

Fabrika Tedarik Süresi

20 Weeks

Parça Durumu

Active

Uzunluk

12.1mm

Insulation Materials

Resin

Pitch Mating

0.049 1.25mm
