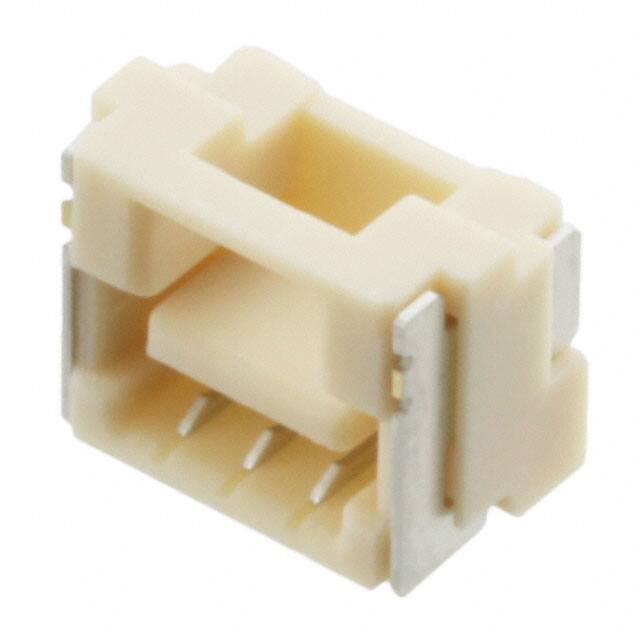

5023820370

Specifications

Pcb Contact Pattern

RECTANGULAR

Parça Durumu

Active

Pitch Mating

0.049 1.25mm

Material Flammability Rating

UL94 V-0

Fabrika Tedarik Süresi

20 Weeks

Style

Board to Cable/Wire

Yayın Yılı

2010

Insulation Height

0.173 4.40mm

Mating Contact Pitch

0.049 inch

Contact Type

Forked

Sıra Sayısı

1

Number Of Positions Loaded

All

Contact Materials

Copper Alloy

Current Rating Amps

1A

Additional Feature

CLIK-MATE, POLARIZED

Total Number Of Contacts

3

Kurşunsuz Kodu

yes

Ambalaj

Tape & Reel (TR)

Insulation Color

Natural

Mounting Option1

LOCKING

Contact Resistance

20mOhm

Contact Finish Thickness Post

39.4μin 1.00μm

Seri

CLIK-Mate 502382

Connector Type

Receptacle

Terminal

Solder

Iec Conformance

NO

Din Conformance

NO

Montaj Tipi

Surface Mount

Insulation Materials

Resin

Polarization Key

POLARIZED HOUSING

Applications

Automotive, General Purpose, Industrial, Lighting, Medical

Body Length Or Diameter

0.28 inch

Reference Standard

UL

RoHS Durumu

ROHS3 Compliant

Nominal Gerilim

50V

Mixed Contacts

NO

Number Of Conductors

ONE

Mil Conformance

NO

Contact Finish Thickness Mating

39.4μin 1.00μm

Contact Gender

FEMALE
