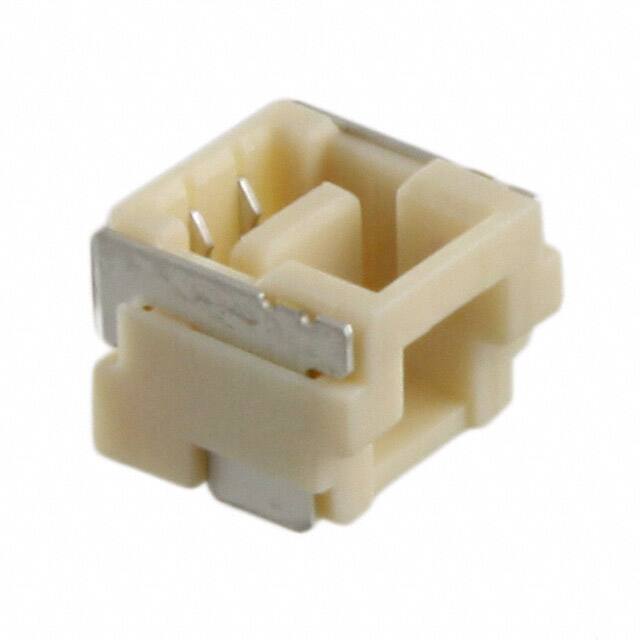

5023820270

Specifications

Contact Finish Thickness Post

39.4μin 1.00μm

Özellikler

Solder Retention

Nem Hassasiyeti (MSL)

1 (Unlimited)

Filter Feature

NO

Insulation Color

Natural

Fastening Type

Latch Holder

Contact Gender

FEMALE

Çalışma Sıcaklığı

-40°C~105°C

Contact Finish Mating

Tin

Kurşunsuz Kodu

yes

Mil Conformance

NO

Total Number Of Contacts

2

Ambalaj

Tape & Reel (TR)

Contact Finish Thickness Mating

39.4μin 1.00μm

Din Conformance

NO

Montaj Tipi

Surface Mount

Ul Flammability Code

94V-0

JESD-609 Kodu

e3

Iec Conformance

NO

Connector Type

Receptacle

Terminal

Solder

Pozisyon Sayısı

2

Seri

CLIK-Mate 502382

Fabrika Tedarik Süresi

12 Weeks

Yayın Yılı

2010

Style

Board to Cable/Wire

Applications

Automotive, General Purpose, Industrial, Lighting, Medical

Material Flammability Rating

UL94 V-0

Insulation Materials

Resin

Pitch Mating

0.049 1.25mm

Parça Durumu

Active

Additional Feature

CLIK-MATE, POLARIZED

Contact Materials

Copper Alloy

Current Rating Amps

1A

Mixed Contacts

NO

Contact Type

Forked

Nominal Gerilim

50V

RoHS Durumu

ROHS3 Compliant

Number Of Positions Loaded

All

Sıra Sayısı

1
