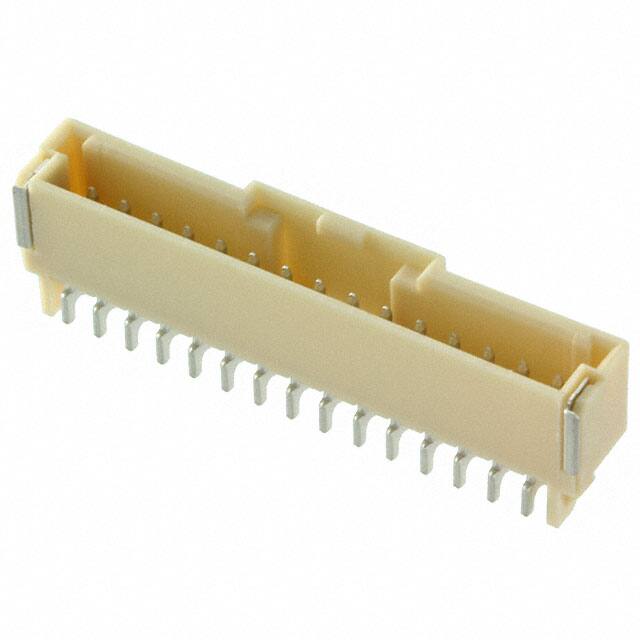

5023521500

Specifications

Ambalaj

Cut Tape (CT)

Total Number Of Contacts

15

Kurşunsuz Kodu

yes

Contact Finish Mating

Tin

Fastening Type

Latch Lock

Insulation Color

Natural

Nem Hassasiyeti (MSL)

1 (Unlimited)

Özellikler

Solder Retention

Body Breadth

0.252 inch

Terminal Adımı

2.0066mm

Number Of Pcb Rows

1

Seri

DuraClik 502352

Pozisyon Sayısı

15

Connector Type

Header

Terminal

Solder

Reliability

COMMERCIAL

Operating Temperature Min

-40°C

Contact Lengthmating

0.136 3.45mm

JESD-609 Kodu

e3

Rated Current Signal

3A

Montaj Tipi

Surface Mount, Right Angle

Parça Durumu

Active

Pcb Contact Pattern

RECTANGULAR

Pitch Mating

0.079 2.00mm

Insulation Materials

Polyamide (PA), Nylon

Polarization Key

POLARIZED HOUSING

Material Flammability Rating

UL94 V-0

Shrouding

Shrouded - 4 Wall

Applications

Automotive, Industrial

Fabrika Tedarik Süresi

11 Weeks

Yayın Yılı

2014

Style

Board to Cable/Wire

Body Depth

0.37 inch

Durability

30 Cycles

Mating Contact Pitch

0.079 inch

Insulation Height

0.252 6.40mm

Reference Standard

UL

Number Of Positions Loaded

All

Sıra Sayısı

1

Contact Type

Male Pin
