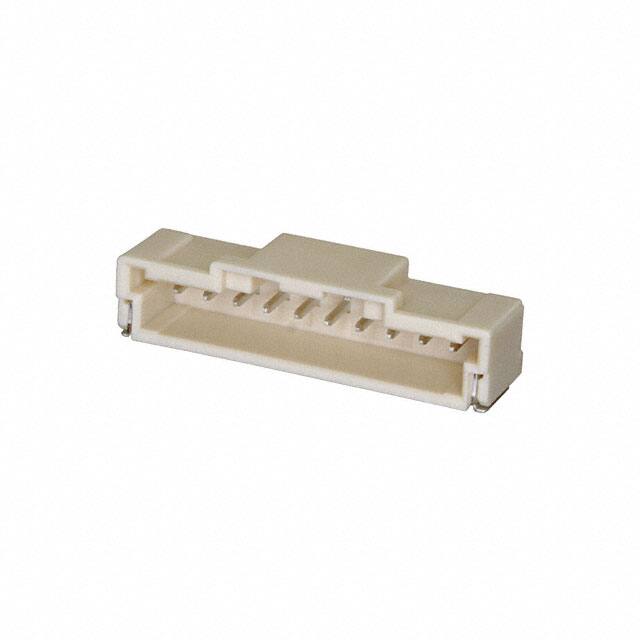

5023521000

Specifications

Insulation Materials

Polyamide (PA), Nylon

Pitch Mating

0.079 2.00mm

Parça Durumu

Active

Pcb Contact Pattern

RECTANGULAR

Body Depth

0.37 inch

Fabrika Tedarik Süresi

16 Weeks

Yayın Yılı

2015

Style

Board to Cable/Wire

Shrouding

Shrouded - 4 Wall

Applications

Automotive, Industrial

Polarization Key

POLARIZED HOUSING

Material Flammability Rating

UL94 V-0

Reference Standard

UL

Mating Contact Pitch

0.079 inch

Insulation Height

0.252 6.40mm

Durability

30 Cycles

Body Length Or Diameter

0.945 inch

Contact Shape

Square

Mixed Contacts

NO

Number Of Conductors

ONE

Contact Materials

Copper Alloy

Sıra Sayısı

1

Number Of Positions Loaded

All

RoHS Durumu

ROHS3 Compliant

Contact Type

Male Pin

Özellikler

Solder Retention

Nem Hassasiyeti (MSL)

1 (Unlimited)

Body Breadth

0.252 inch

Fastening Type

Latch Holder

Insulation Color

Natural

Filter Feature

NO

Contact Finish Mating

Tin

Ambalaj

Tape & Reel (TR)

Total Number Of Contacts

10

Kurşunsuz Kodu

yes

Option

GENERAL PURPOSE

Terminal Adımı

2mm

Mounting Option1

LOCKING

Terminal

Solder

Connector Type

Header
