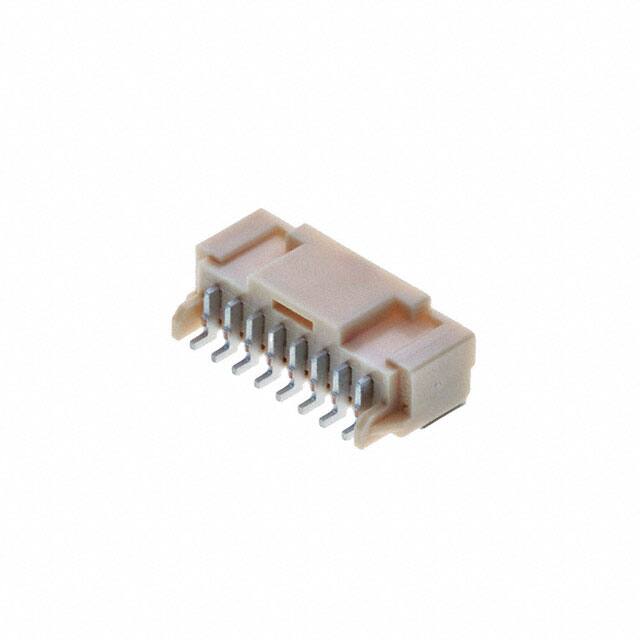

5023520810

Specifications

Montaj Tipi

Surface Mount, Right Angle

Connector Type

Header

Terminal

Solder

Reliability

COMMERCIAL

Pozisyon Sayısı

8

Montaj

Surface Mount

Number Of Pcb Rows

1

Seri

DuraClik 502352

Housing Material

Polyamide

Terminal Adımı

2.0066mm

Housing Color

Natural

Depth

9.4mm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Özellikler

Solder Retention

Body Breadth

0.252 inch

Fastening Type

Latch Holder

Contact Finish Mating

Gold

Min. Çalışma Sıcaklığı

-40°C

Glow Wire Compliant

Non-compliant

Ambalaj

Tape & Reel (TR)

Total Number Of Contacts

8

Contact Shape

Square

Number Of Conductors

ONE

Contact Materials

Copper Alloy

Dielectric Withstanding Voltage

500VAC V

Number Of Positions Loaded

All

Sıra Sayısı

1

RoHS Durumu

ROHS3 Compliant

Contact Type

Male Pin

Reference Standard

UL

Mating Contact Pitch

0.079 inch

Maks. Çalışma Sıcaklığı

105°C

Insulation Height

0.252 6.40mm

Durability

30 Cycles

ECCN Kodu

EAR99

Orientation

Right Angle

Fabrika Tedarik Süresi

17 Weeks

Yayın Yılı

2015

Style

Board to Cable/Wire

Shrouding

Shrouded - 4 Wall
