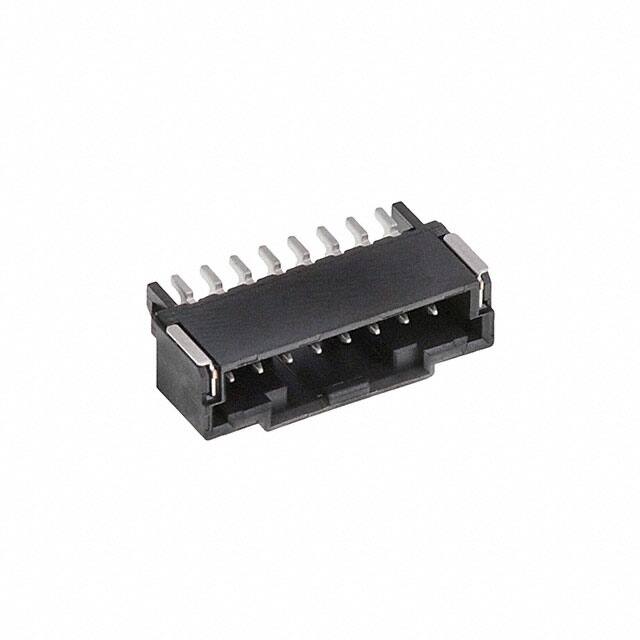

5023520801

Specifications

Ambalaj

Tape & Reel (TR)

Total Number Of Contacts

8

Contact Finish Mating

Tin

Fastening Type

Latch Holder

Insulation Color

Black

Özellikler

Solder Retention

Nem Hassasiyeti (MSL)

1 (Unlimited)

Body Breadth

0.252 inch

Mounting Option1

LOCKING

Terminal Adımı

2.0066mm

Number Of Pcb Rows

1

Seri

DuraClik 502352

Pozisyon Sayısı

8

Reliability

COMMERCIAL

Terminal

Solder

Connector Type

Header

Operating Temperature Min

-40°C

Montaj Tipi

Surface Mount, Right Angle

Parça Durumu

Active

Pcb Contact Pattern

RECTANGULAR

Pitch Mating

0.079 2.00mm

Insulation Materials

Polyamide (PA), Nylon

Polarization Key

POLARIZED HOUSING

Material Flammability Rating

UL94 V-0

Shrouding

Shrouded - 4 Wall

Applications

Automotive, Industrial

Style

Board to Cable/Wire

Yayın Yılı

2015

Fabrika Tedarik Süresi

11 Weeks

Body Depth

0.37 inch

Durability

30 Cycles

ECCN Kodu

EAR99

Mating Contact Pitch

0.079 inch

Insulation Height

0.252 6.40mm

Reference Standard

UL

Sıra Sayısı

1

Number Of Positions Loaded

All

Dielectric Withstanding Voltage

500VAC V

RoHS Durumu

ROHS3 Compliant

Contact Type

Male Pin
