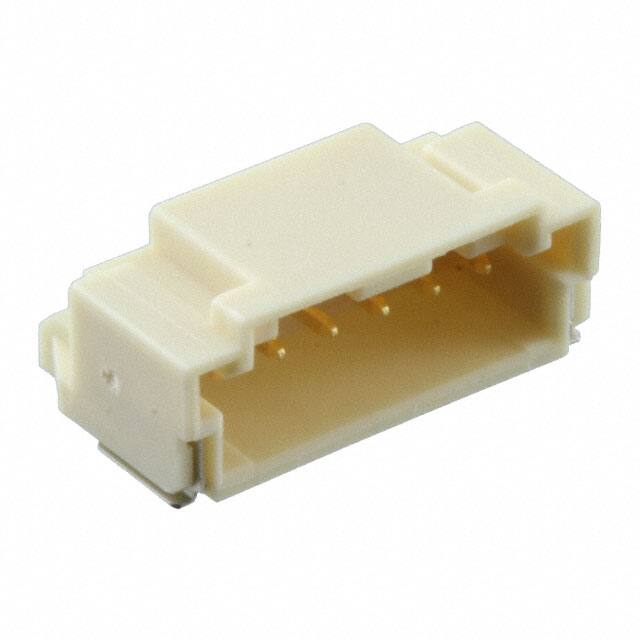

5023520610

Specifications

Ambalaj

Tape & Reel (TR)

Total Number Of Contacts

6

Contact Finish Mating

Gold

Fastening Type

Latch Holder

Insulation Color

Natural

Özellikler

Solder Retention

Nem Hassasiyeti (MSL)

1 (Unlimited)

Body Breadth

0.252 inch

Mounting Option1

LOCKING

Seri

DuraClik 502352

Number Of Pcb Rows

1

Pozisyon Sayısı

6

Connector Type

Header

Terminal

Solder

Reliability

COMMERCIAL

Operating Temperature Min

-40°C

Montaj Tipi

Surface Mount, Right Angle

Parça Durumu

Active

Pcb Contact Pattern

RECTANGULAR

Pitch Mating

0.079 2.00mm

Insulation Materials

Polyamide (PA), Nylon

Polarization Key

POLARIZED HOUSING

Material Flammability Rating

UL94 V-0

Shrouding

Shrouded - 4 Wall

Applications

Automotive, Industrial

Board Mounting Option

FITTING NAIL

Style

Board to Cable/Wire

Yayın Yılı

2015

Fabrika Tedarik Süresi

17 Weeks

Body Depth

0.37 inch

Durability

30 Cycles

ECCN Kodu

EAR99

Mating Contact Pitch

0.079 inch

Insulation Height

0.252 6.40mm

Reference Standard

UL

Dielectric Withstanding Voltage

500VAC V

Number Of Positions Loaded

All

Sıra Sayısı

1

Contact Type

Male Pin

RoHS Durumu

ROHS3 Compliant
