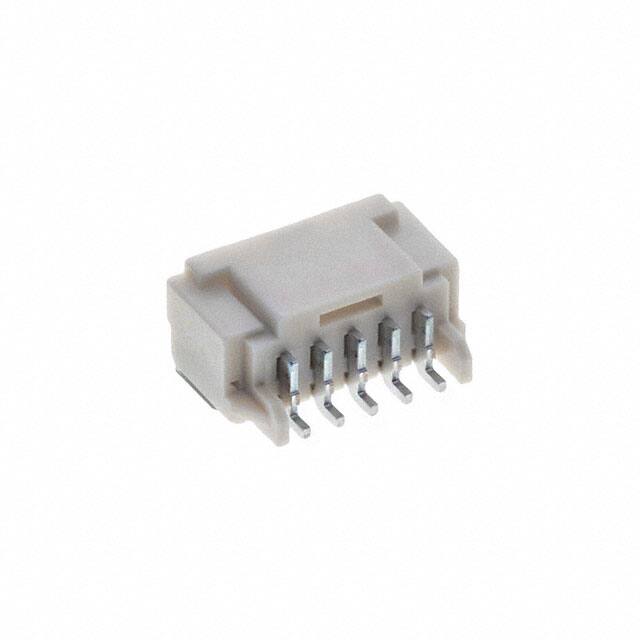

5023520510

Specifications

Özellikler

Solder Retention

Nem Hassasiyeti (MSL)

1 (Unlimited)

Fastening Type

Latch Holder

Insulation Color

Natural

Contact Finish Mating

Gold

Ambalaj

Cut Tape (CT)

Total Number Of Contacts

5

Terminal Adımı

2.0066mm

Mounting Option1

LOCKING

Reliability

COMMERCIAL

Terminal

Solder

Connector Type

Header

Pozisyon Sayısı

5

Number Of Pcb Rows

1

Seri

DuraClik 502352

Montaj Tipi

Surface Mount, Right Angle

Operating Temperature Min

-40°C

Insulation Materials

Polyamide (PA), Nylon

Pitch Mating

0.079 2.00mm

Parça Durumu

Active

Pcb Contact Pattern

RECTANGULAR

Body Depth

0.37 inch

Style

Board to Cable/Wire

Yayın Yılı

2014

Fabrika Tedarik Süresi

12 Weeks

Shrouding

Shrouded - 4 Wall

Applications

Automotive, Industrial

Board Mounting Option

FITTING NAIL

Polarization Key

POLARIZED HOUSING

Material Flammability Rating

UL94 V-0

Reference Standard

UL

Mating Contact Pitch

0.079 inch

Insulation Height

0.252 6.40mm

Durability

30 Cycles

ECCN Kodu

EAR99

Contact Shape

Square

Number Of Conductors

ONE

Contact Materials

Copper Alloy

Sıra Sayısı

1

Number Of Positions Loaded

All
