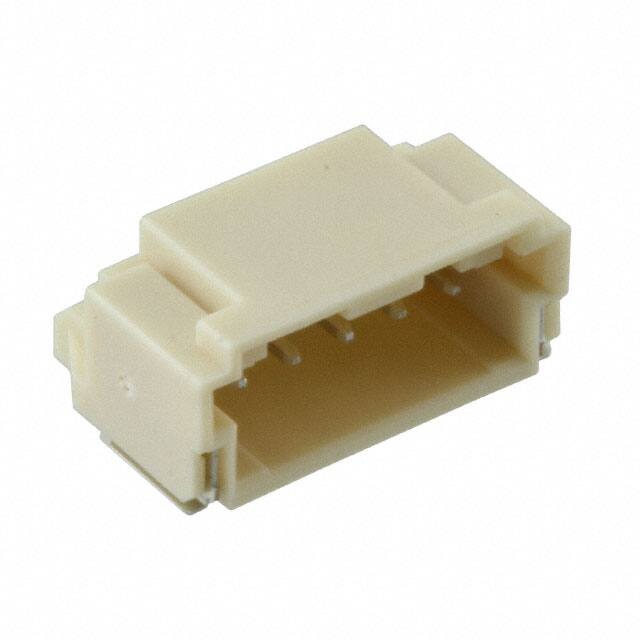

5023520500

Specifications

Nominal Gerilim

125V

RoHS Durumu

ROHS3 Compliant

Number Of Conductors

ONE

Insulation Resistance

1GOhm

Durability

30 Cycles

Reach Svhc

Unknown

Reference Standard

UL

Polarization Key

POLARIZED HOUSING

Applications

Automotive, Industrial

Akım Değeri

3A

Insulation

Insulated

Orientation

Right Angle

Body Depth

0.37 inch

Insulation Materials

Polyamide (PA), Nylon

Rated Current Signal

3A

Ambient Temperature Range High

105°C

Number Of Pcb Rows

1

Reliability

COMMERCIAL

Terminal Adımı

2.0066mm

Glow Wire Compliant

Non-compliant

Contact Finish Mating

Tin

Min. Çalışma Sıcaklığı

-40°C

Contact Gender

Male

Fastening Type

Latch Lock

Özellikler

Solder Retention

Nem Hassasiyeti (MSL)

1 (Unlimited)

Sıra Sayısı

1

Number Of Positions Loaded

All

Contact Type

Male Pin

Contact Materials

Copper Alloy

Contact Shape

Square

Mating Contact Pitch

0.079 inch

Maks. Çalışma Sıcaklığı

105°C

Insulation Height

0.252 6.40mm

Yükseklik

6.6mm

Material Flammability Rating

UL94 V-0

Shrouding

Shrouded - 4 Wall

Fabrika Tedarik Süresi

17 Weeks

Style

Board to Cable/Wire

Yayın Yılı

2015
