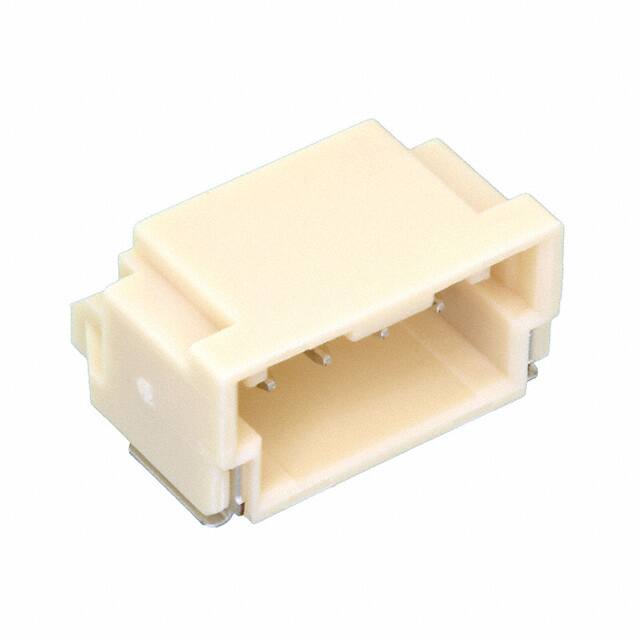

5023520400

Specifications

Pcb Contact Pattern

RECTANGULAR

Parça Durumu

Active

Pitch Mating

0.079 2.00mm

Insulation Materials

Polyamide (PA), Nylon

Material Flammability Rating

UL94 V-0

Polarization Key

POLARIZED HOUSING

Applications

Automotive, Industrial

Shrouding

Shrouded - 4 Wall

Fabrika Tedarik Süresi

17 Weeks

Yayın Yılı

2009

Style

Board to Cable/Wire

Body Depth

0.37 inch

Durability

30 Cycles

Insulation Height

0.252 6.40mm

Mating Contact Pitch

0.079 inch

Reference Standard

UL

Contact Type

Male Pin

RoHS Durumu

ROHS3 Compliant

Dielectric Withstanding Voltage

500VAC V

Number Of Positions Loaded

All

Sıra Sayısı

1

Contact Materials

Copper Alloy

Number Of Conductors

ONE

Contact Shape

Square

Kurşunsuz Kodu

yes

Total Number Of Contacts

4

Ambalaj

Tape & Reel (TR)

Contact Finish Mating

Tin

Insulation Color

Natural

Fastening Type

Latch Lock

Body Breadth

0.252 inch

Özellikler

Solder Retention

Nem Hassasiyeti (MSL)

1 (Unlimited)

Mounting Option1

LOCKING

Terminal Adımı

2mm

Seri

DuraClik 502352

Number Of Pcb Rows

1

Pozisyon Sayısı

4

Connector Type

Header

Terminal

Solder
