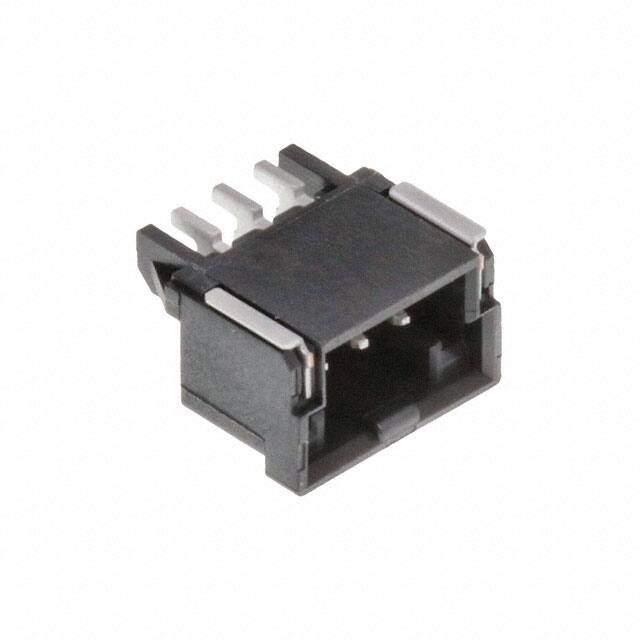

5023520301

Specifications

Reference Standard

UL

Body Length Or Diameter

0.406 inch

ECCN Kodu

EAR99

Insulation Height

0.252 6.40mm

Mating Contact Pitch

0.079 inch

Contact Materials

Copper Alloy

Number Of Conductors

ONE

Contact Shape

Square

RoHS Durumu

ROHS3 Compliant

Contact Type

Male Pin

Sıra Sayısı

1

Number Of Positions Loaded

All

Dielectric Withstanding Voltage

500VAC V

Pitch Mating

0.079 2.00mm

Insulation Materials

Polyamide (PA), Nylon

Pcb Contact Pattern

RECTANGULAR

Parça Durumu

Active

Style

Board to Cable/Wire

Yayın Yılı

2015

Fabrika Tedarik Süresi

14 Weeks

Material Flammability Rating

UL94 V-0

Polarization Key

POLARIZED HOUSING

Applications

Automotive, Industrial

Shrouding

Shrouded - 4 Wall

Reliability

COMMERCIAL

Terminal

Solder

Connector Type

Header

Number Of Pcb Rows

1

Seri

DuraClik 502352

Pozisyon Sayısı

3

Montaj Tipi

Surface Mount, Right Angle

Operating Temperature Min

-40°C

JESD-609 Kodu

e3

Insulation Color

Black

Fastening Type

Latch Holder

Body Breadth

0.252 inch

Özellikler

Solder Retention

Nem Hassasiyeti (MSL)

1 (Unlimited)

Total Number Of Contacts

3

Ambalaj

Tape & Reel (TR)
