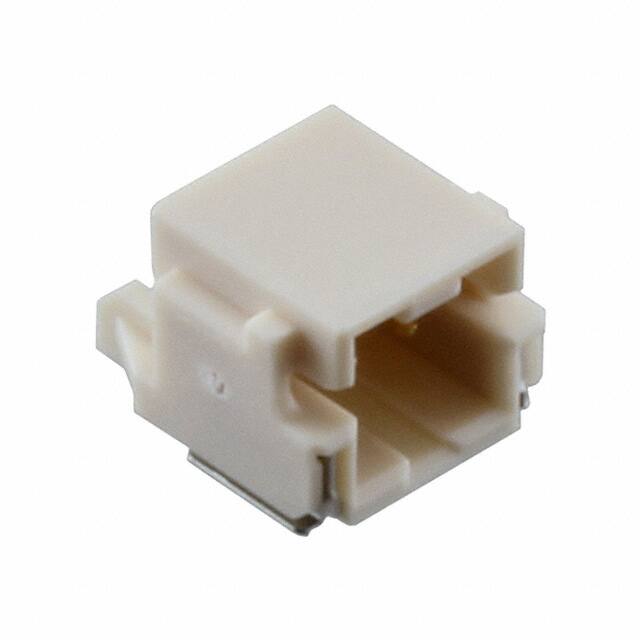

5023520210

Specifications

RoHS Durumu

ROHS3 Compliant

Dielectric Withstanding Voltage

500VAC V

Mixed Contacts

NO

Number Of Conductors

ONE

Durability

30 Cycles

Reference Standard

UL

Polarization Key

POLARIZED HOUSING

Applications

Automotive, Industrial

Body Depth

0.37 inch

Insulation Materials

Polyamide (PA), Nylon

Operating Temperature Min

-40°C

Ul Flammability Code

94V-0

Mating Information

MULTIPLE MATING PARTS AVAILABLE

JESD-609 Kodu

e4

Number Of Pcb Rows

1

Pozisyon Sayısı

2

Reliability

COMMERCIAL

Mil Conformance

NO

Contact Finish Mating

Gold

Filter Feature

NO

Fastening Type

Latch Holder

Nem Hassasiyeti (MSL)

1 (Unlimited)

Özellikler

Solder Retention

Contact Type

Male Pin

Sıra Sayısı

1

Number Of Positions Loaded

All

Contact Materials

Copper Alloy

Contact Shape

Square

Insulation Height

0.252 6.40mm

Mating Contact Pitch

0.079 inch

Material Flammability Rating

UL94 V-0

Board Mounting Option

FITTING NAIL

Shrouding

Shrouded - 4 Wall

Yayın Yılı

2015

Style

Board to Cable/Wire

Fabrika Tedarik Süresi

12 Weeks

Pcb Contact Pattern

RECTANGULAR

Parça Durumu

Active

Pitch Mating

0.079 2.00mm

Iec Conformance

NO
