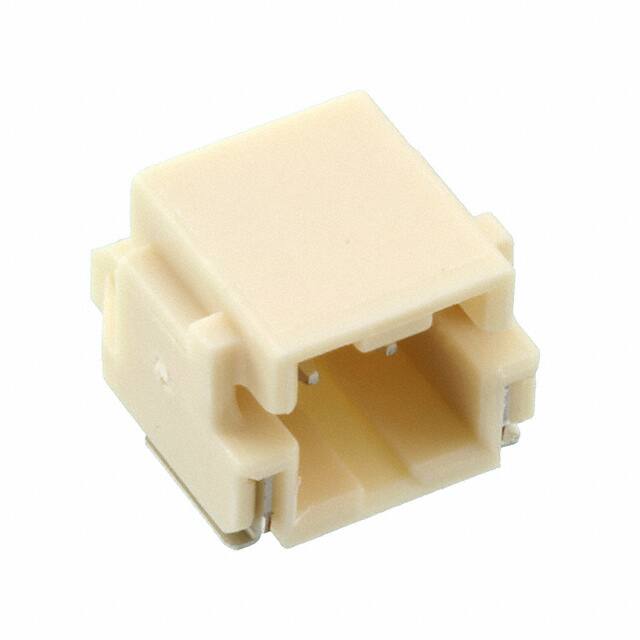

Specifications
- Özellikler
- Solder Retention
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Fastening Type
- Latch Lock
- Insulation Color
- Natural
- Contact Finish Mating
- Tin
- Ambalaj
- Tape & Reel (TR)
- Total Number Of Contacts
- 2
- Kurşunsuz Kodu
- yes
- Mounting Option1
- LOCKING
- Reliability
- COMMERCIAL
- Terminal
- Solder
- Connector Type
- Header
- Pozisyon Sayısı
- 2
- Number Of Pcb Rows
- 1
- Seri
- DuraClik 502352
- Montaj Tipi
- Surface Mount, Right Angle
- JESD-609 Kodu
- e3
- Contact Lengthmating
- 0.136 3.45mm
- Operating Temperature Min
- -40°C
- Insulation Materials
- Polyamide (PA), Nylon
- Pitch Mating
- 0.079 2.00mm
- Parça Durumu
- Active
- Pcb Contact Pattern
- RECTANGULAR
- Body Depth
- 0.37 inch
- Style
- Board to Cable/Wire
- Yayın Yılı
- 2009
- Fabrika Tedarik Süresi
- 12 Weeks
- Shrouding
- Shrouded - 4 Wall
- Applications
- Automotive, Industrial
- Polarization Key
- POLARIZED HOUSING
- Material Flammability Rating
- UL94 V-0
- Reference Standard
- UL
- Mating Contact Pitch
- 0.079 inch
- Insulation Height
- 0.252 6.40mm
- Durability
- 30 Cycles
- Contact Shape
- Square
- Number Of Conductors
- ONE
- Contact Materials
- Copper Alloy
- Sıra Sayısı
- 1
- Number Of Positions Loaded
- All
