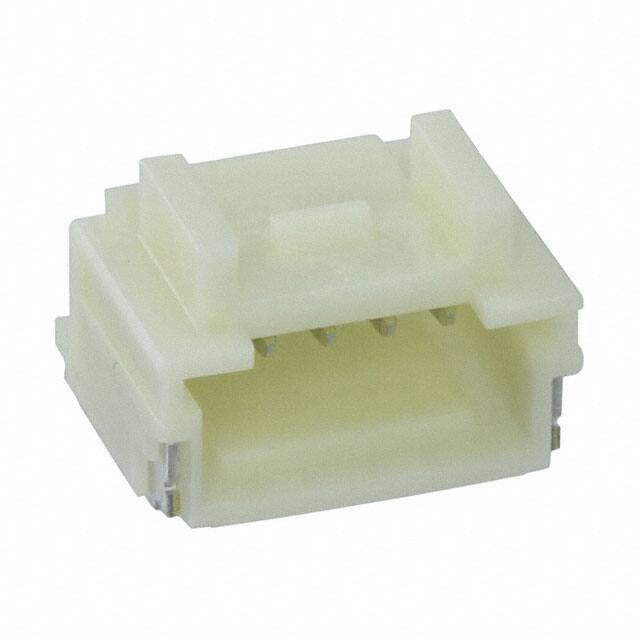

5019530507

Specifications

Insulation Materials

Polyamide (PA), Nylon

Fastening Type

Locking Ramp

Shrouding

Shrouded - 4 Wall

Sıra Sayısı

1

Mating Contact Pitch

0.039 inch

Reliability

COMMERCIAL

Operating Temperature Min

-40°C

Ul Flammability Code

94V-0

Mil Conformance

NO

Applications

General Purpose

JESD-609 Kodu

e3

Contact Resistance

20mOhm

RoHS Durumu

ROHS3 Compliant

Contact Finish Mating

Tin

Contact Finish Thickness Mating

39.4μin 1.00μm

Insulation Height

0.185 4.70mm

Mixed Contacts

NO

Yayın Yılı

2007

Number Of Pcb Rows

1

Seri

Pico-Clasp 501953

Özellikler

Solder Retention

Terminal

Solder

Reference Standard

UL

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Materials

Phosphor Bronze

Ambalaj

Tape & Reel (TR)

Parça Durumu

Active

Montaj Tipi

Surface Mount, Right Angle

Din Conformance

NO

Fabrika Tedarik Süresi

26 Weeks

Kurşunsuz Kodu

yes

Material Flammability Rating

UL94 V-0

Number Of Conductors

ONE

Number Of Positions Loaded

All

Iec Conformance

NO

Pozisyon Sayısı

5

Insulation Color

Natural

Pcb Contact Pattern

RECTANGULAR

Connector Type

Header

Contact Gender

FEMALE
