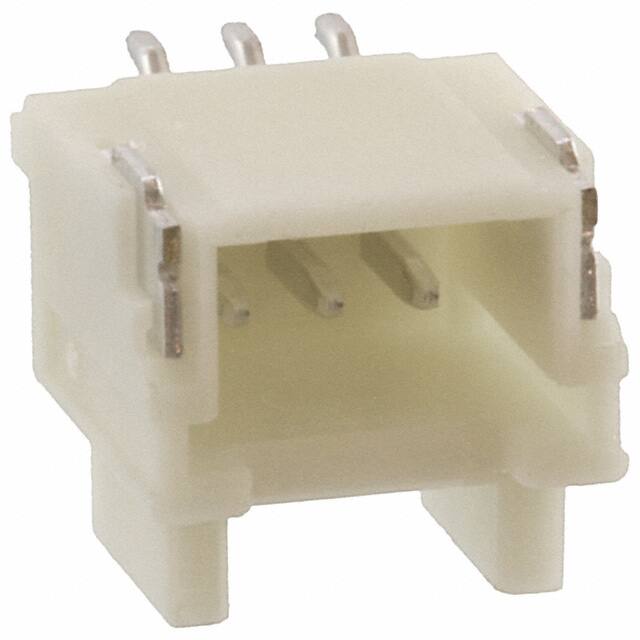

5019530307

Specifications

Özellikler

Solder Retention

Seri

Pico-Clasp 501953

Number Of Pcb Rows

1

Yayın Yılı

2007

Mixed Contacts

NO

Insulation Height

0.185 4.70mm

Contact Materials

Phosphor Bronze

Nem Hassasiyeti (MSL)

1 (Unlimited)

Reference Standard

UL

Terminal

Solder

Reliability

COMMERCIAL

Shrouding

Shrouded - 4 Wall

Sıra Sayısı

1

Fastening Type

Locking Ramp

Insulation Materials

Polyamide (PA), Nylon

Contact Finish Thickness Mating

39.4μin 1.00μm

Contact Finish Mating

Tin

Contact Resistance

20mOhm

RoHS Durumu

ROHS3 Compliant

JESD-609 Kodu

e3

Applications

General Purpose

Mil Conformance

NO

Operating Temperature Min

-40°C

Ul Flammability Code

94V-0

Connector Type

Header

Contact Gender

FEMALE

Insulation Color

Natural

Pcb Contact Pattern

RECTANGULAR

Pozisyon Sayısı

3

Iec Conformance

NO

Number Of Positions Loaded

All

Number Of Conductors

ONE

Body Length Or Diameter

0.276 inch

Contact Shape

Square

Pitch Mating

0.039 1.00mm

Contact Type

Male Pin

Filter Feature

NO

Style

Board to Cable/Wire

Total Number Of Contacts

3

Din Conformance

NO
