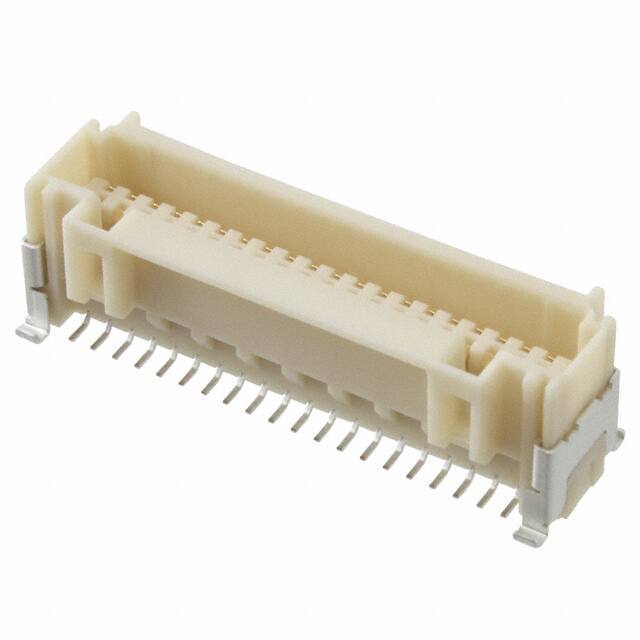

5019314070

Specifications

Applications

General Purpose

Contact Finish Thickness Mating

3.90μin 0.099μm

Contact Finish Mating

Gold

RoHS Durumu

ROHS3 Compliant

Insulation Resistance

100000000Ohm

Insulation Materials

Polyamide (PA), Nylon

Reliability

COMMERCIAL

Mating Contact Pitch

0.049 inch

Sıra Sayısı

2

Fastening Type

Detent Lock

Terminal

Solder

Mounting Option1

LOCKING

Contact Materials

Copper Alloy

Nem Hassasiyeti (MSL)

1 (Unlimited)

Reference Standard

UL

Yayın Yılı

2012

Insulation Height

0.346 8.80mm

Özellikler

Pick and Place, Solder Retention

Seri

Duo-Clasp 501931

Number Of Pcb Rows

2

Çalışma Sıcaklığı

-25°C~85°C

Contact Finish Thickness Post

39.4μin 1.00μm

Fabrika Tedarik Süresi

12 Weeks

Nominal Gerilim

50V

Material Flammability Rating

UL94 V-0

Current Rating Amps

1A

Parça Durumu

Active

Ambalaj

Tape & Reel (TR)

Montaj Tipi

Surface Mount

Style

Board to Cable/Wire

Total Number Of Contacts

40

Body Depth

0.346 inch

Body Length Or Diameter

1.161 inch

Pitch Mating

0.049 1.25mm

Contact Type

Forked

Body Breadth

0.346 inch

Plating Thickness

3.93μin

Contact Finish Post

Tin

Number Of Positions Loaded

All

Number Of Conductors

ONE
