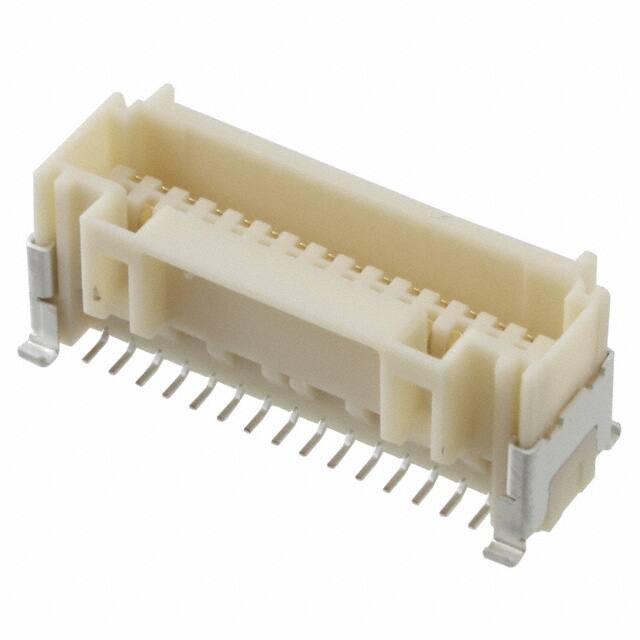

Specifications
- Ambalaj
- Tape & Reel (TR)
- Din Conformance
- NO
- ECCN Kodu
- EAR99
- Nominal Gerilim
- 50V
- Material Flammability Rating
- UL94 V-0
- Contact Finish Post
- Tin
- Number Of Positions Loaded
- All
- Pcb Contact Pattern
- RECTANGULAR
- Style
- Board to Cable/Wire
- Pitch Mating
- 0.049 1.25mm
- Filter Feature
- NO
- Insulation Resistance
- 100000000Ohm
- Reliability
- COMMERCIAL
- Additional Feature
- DUO-CLASP, POLARIZED
- Contact Finish Mating
- Gold
- Contact Finish Thickness Mating
- 3.90μin 0.099μm
- HTS Kodu
- 8536.69.40.40
- Mixed Contacts
- NO
- Seri
- Duo-Clasp 501931
- Özellikler
- Pick and Place, Solder Retention
- Çalışma Sıcaklığı
- -25°C~85°C
- Number Of Pcb Rows
- 2
- Terminal
- Solder
- Mounting Option1
- LOCKING
- Reference Standard
- UL
- Contact Materials
- Copper Alloy
- Parça Durumu
- Active
- Current Rating Amps
- 1A
- Montaj Tipi
- Surface Mount
- Fabrika Tedarik Süresi
- 15 Weeks
- Kurşunsuz Kodu
- yes
- Number Of Conductors
- ONE
- Iec Conformance
- NO
- Contact Gender
- FEMALE
- Connector Type
- Receptacle
- Pozisyon Sayısı
- 30
- Insulation Color
- Natural
- Total Number Of Contacts
- 30
- Body Depth
- 0.346 inch
- Body Length Or Diameter
- 0.898 inch
