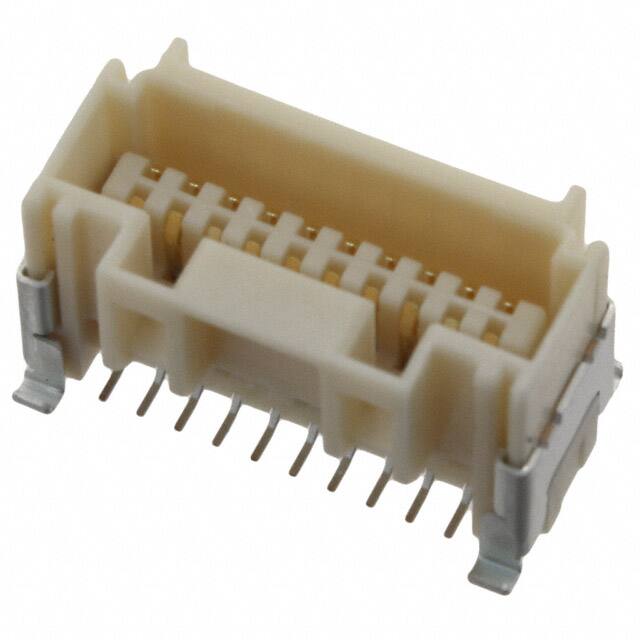

5019312070

Specifications

Parça Durumu

Active

Montaj Tipi

Surface Mount

Depth

8.85mm

Fabrika Tedarik Süresi

12 Weeks

Number Of Conductors

ONE

Iec Conformance

NO

Connector Type

Receptacle

Contact Gender

Female

Body Breadth

0.346 inch

Contact Type

Forked

Plating Thickness

3.93μin

Insulation Materials

Polyamide (PA), Nylon

Rated Current Signal

1A

Mating Contact Pitch

0.049 inch

Sıra Sayısı

2

Fastening Type

Detent Lock

Glow Wire Compliant

Non-compliant

Voltage Rated Ac

50V

Ul Flammability Code

94V-0

Radyasyon Dayanımı

No

Applications

General Purpose

Mil Conformance

NO

RoHS Durumu

ROHS3 Compliant

Contact Resistance

20mOhm

JESD-609 Kodu

e3

Orientation

Vertical

Insulation Height

0.346 8.80mm

Yayın Yılı

2012

Contact Finish Thickness Post

39.4μin 1.00μm

Max Voltage Rating Ac

50V

Reach Svhc

Unknown

Number Of Contacts

20

Housing Color

Natural

Nem Hassasiyeti (MSL)

1 (Unlimited)

Ambalaj

Tape & Reel (TR)

Din Conformance

NO

ECCN Kodu

EAR99

Housing Material

Polyamide

Material Flammability Rating

UL94 V-0

Number Of Positions Loaded

All
