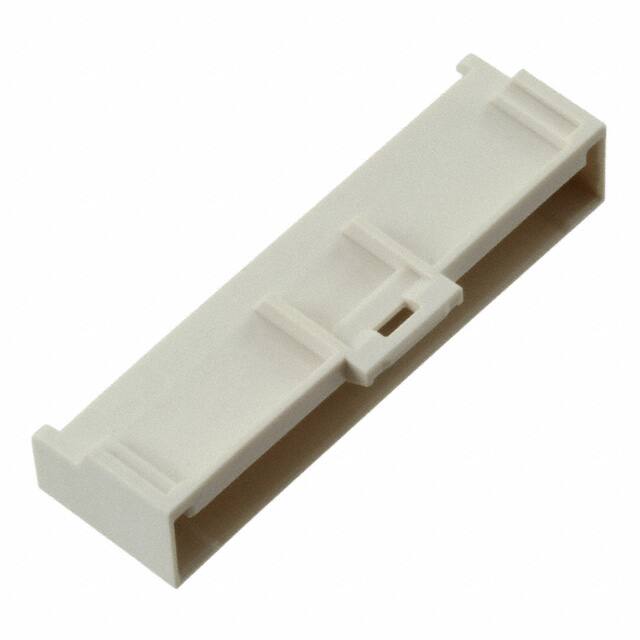

5018764040

Specifications

Terminal

Solder

Contact Materials

Brass

Nem Hassasiyeti (MSL)

1 (Unlimited)

Reference Standard

UL

Mounting Option1

LOCKING

Insulation Height

0.327 8.30mm

Yayın Yılı

2005

Number Of Pcb Rows

2

Contact Length Post

0.126 3.20mm

Row Spacing Mating

0.079 (2.00mm)

Seri

iGrid 501876

Operating Temperature Max

85°C

Applications

Automotive, General Purpose, Industrial, Medical, Telecommunications

RoHS Durumu

ROHS3 Compliant

Contact Finish Mating

Tin

Rated Current Signal

1A

Insulation Materials

Polyamide (PA66), Nylon 6/6, Glass Filled

Insulation Resistance

1000000000Ohm

Dielectric Withstanding Voltage

1000VAC V

Fastening Type

Latch Holder

Mating Contact Pitch

0.079 inch

Shrouding

Shrouded - 4 Wall

Sıra Sayısı

2

Reliability

COMMERCIAL

Body Depth

0.57 inch

Style

Board to Cable/Wire

Contact Type

Male Pin

Contact Shape

Square

Pitch Mating

0.079 2.00mm

Body Length Or Diameter

1.653 inch

Number Of Conductors

ONE

Number Of Positions Loaded

All

Pozisyon Sayısı

40

Pcb Contact Pattern

RECTANGULAR

Insulation Color

Natural

Contact Gender

FEMALE

Connector Type

Header

Kurşunsuz Kodu

yes

Fabrika Tedarik Süresi

21 Weeks

Material Flammability Rating

UL94 V-0
