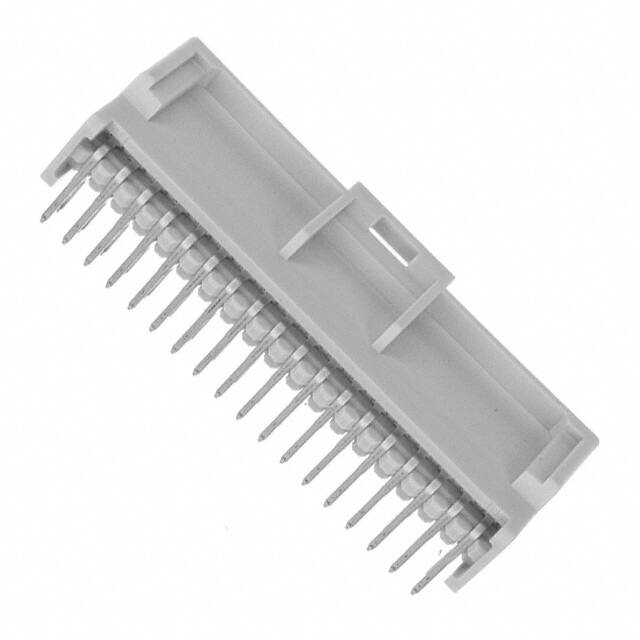

5018763640

Specifications

Insulation Materials

Polyamide (PA66), Nylon 6/6, Glass Filled

Fastening Type

Latch Holder

Shrouding

Shrouded - 4 Wall

Sıra Sayısı

2

Applications

Automotive, General Purpose, Industrial, Medical, Telecommunications

RoHS Durumu

ROHS3 Compliant

Contact Finish Mating

Tin

Insulation Height

0.327 8.30mm

Yayın Yılı

2005

Contact Length Post

0.126 3.20mm

Seri

iGrid 501876

Row Spacing Mating

0.079 (2.00mm)

Terminal

Solder

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Materials

Brass

Ambalaj

Tray

Parça Durumu

Active

Montaj Tipi

Through Hole, Right Angle

Fabrika Tedarik Süresi

21 Weeks

Kurşunsuz Kodu

yes

Material Flammability Rating

UL94 V-0

Number Of Positions Loaded

All

Pozisyon Sayısı

36

Insulation Color

Natural

Connector Type

Header

Style

Board to Cable/Wire

Contact Type

Male Pin

Contact Shape

Square

Pitch Mating

0.079 2.00mm
