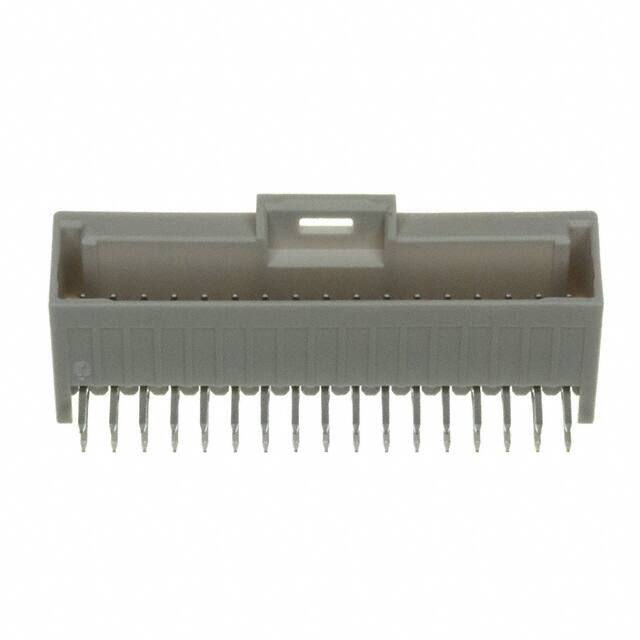

5018763440

Specifications

Mounting Option1

LOCKING

Contact Materials

Brass

Nem Hassasiyeti (MSL)

1 (Unlimited)

Reference Standard

UL

Terminal

Solder

Contact Length Post

0.126 3.20mm

Row Spacing Mating

0.079 (2.00mm)

Seri

iGrid 501876

Number Of Pcb Rows

2

Yayın Yılı

2005

HTS Kodu

8536.69.40.40

Insulation Height

0.327 8.30mm

Contact Finish Mating

Tin

RoHS Durumu

ROHS3 Compliant

Applications

Automotive, General Purpose, Industrial, Medical, Telecommunications

Operating Temperature Max

85°C

Reliability

COMMERCIAL

Sıra Sayısı

2

Shrouding

Shrouded - 4 Wall

Mating Contact Pitch

0.079 inch

Fastening Type

Latch Holder

Dielectric Withstanding Voltage

1000VAC V

Insulation Resistance

1000000000Ohm

Insulation Materials

Polyamide (PA66), Nylon 6/6, Glass Filled

Rated Current Signal

1A

Body Length Or Diameter

1.417 inch

Pitch Mating

0.079 2.00mm

Contact Shape

Square

Contact Type

Male Pin

Style

Board to Cable/Wire

Body Depth

0.57 inch

Connector Type

Header

Contact Gender

FEMALE

Insulation Color

Natural

Pcb Contact Pattern

RECTANGULAR

Pozisyon Sayısı

34

Number Of Conductors

ONE

Number Of Positions Loaded

All

Material Flammability Rating

UL94 V-0

Fabrika Tedarik Süresi

21 Weeks
