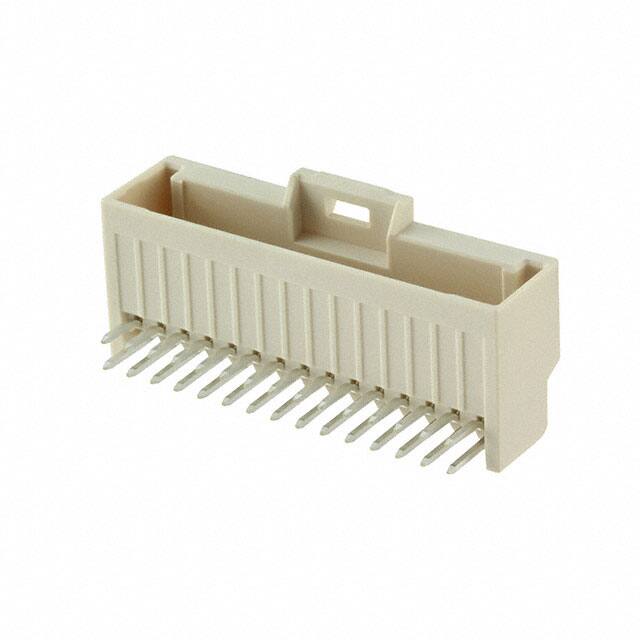

5018763040

Specifications

Ambalaj

Tray

Parça Durumu

Active

Montaj Tipi

Through Hole, Right Angle

ECCN Kodu

EAR99

Fabrika Tedarik Süresi

21 Weeks

Material Flammability Rating

UL94 V-0

Number Of Positions Loaded

All

Number Of Conductors

ONE

Pozisyon Sayısı

30

Insulation Color

Natural

Connector Type

Header

Style

Board to Cable/Wire

Contact Type

Male Pin

Contact Shape

Square

Pitch Mating

0.079 2.00mm

Rated Current Signal

2A

Insulation Materials

Polyamide (PA66), Nylon 6/6, Glass Filled

Insulation Resistance

1000000000Ohm

Fastening Type

Latch Holder

Dielectric Withstanding Voltage

1400VAC V

Sıra Sayısı

2

Shrouding

Shrouded - 4 Wall

Mating Contact Pitch

0.079 inch

Reliability

COMMERCIAL

Operating Temperature Max

105°C

Operating Temperature Min

-40°C

Applications

Automotive, General Purpose, Industrial, Medical, Telecommunications

RoHS Durumu

ROHS3 Compliant

Contact Finish Mating

Tin

Insulation Height

0.327 8.30mm

HTS Kodu

8536.69.40.40

Yayın Yılı

2005

Number Of Pcb Rows

2

Contact Length Post

0.126 3.20mm

Row Spacing Mating

0.079 (2.00mm)

Seri

iGrid 501876

Terminal

Solder

Contact Materials

Brass

Nem Hassasiyeti (MSL)

1 (Unlimited)

Reference Standard

UL
