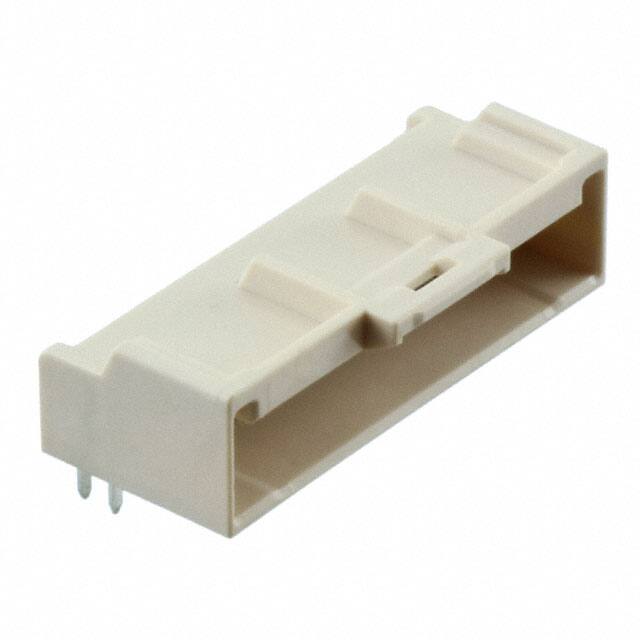

5018762840

Specifications

Style

Board to Cable/Wire

Pitch Mating

0.079 2.00mm

Contact Shape

Square

Contact Type

Male Pin

Number Of Conductors

ONE

Number Of Positions Loaded

All

Connector Type

Header

Insulation Color

Natural

Pozisyon Sayısı

28

Fabrika Tedarik Süresi

21 Weeks

ECCN Kodu

EAR99

Material Flammability Rating

UL94 V-0

Durability

30 Cycles

Parça Durumu

Active

Ambalaj

Tray

Montaj Tipi

Through Hole, Right Angle

Terminal

Solder

Mounting Option1

LOCKING

Nem Hassasiyeti (MSL)

1 (Unlimited)

Reference Standard

UL

Contact Materials

Brass

Yayın Yılı

2005

HTS Kodu

8536.69.40.40

Insulation Height

0.327 8.30mm

Contact Length Post

0.126 3.20mm

Row Spacing Mating

0.079 (2.00mm)

Seri

iGrid 501876

Applications

Automotive, General Purpose, Industrial, Medical, Telecommunications

Operating Temperature Min

-40°C

Operating Temperature Max

105°C

Contact Finish Mating

Tin

RoHS Durumu

ROHS3 Compliant

Insulation Resistance

1000000000Ohm

Insulation Materials

Polyamide (PA66), Nylon 6/6, Glass Filled

Rated Current Signal

2A

Reliability

COMMERCIAL

Mating Contact Pitch

0.079 inch

Sıra Sayısı

2

Shrouding

Shrouded - 4 Wall

Fastening Type

Latch Holder
