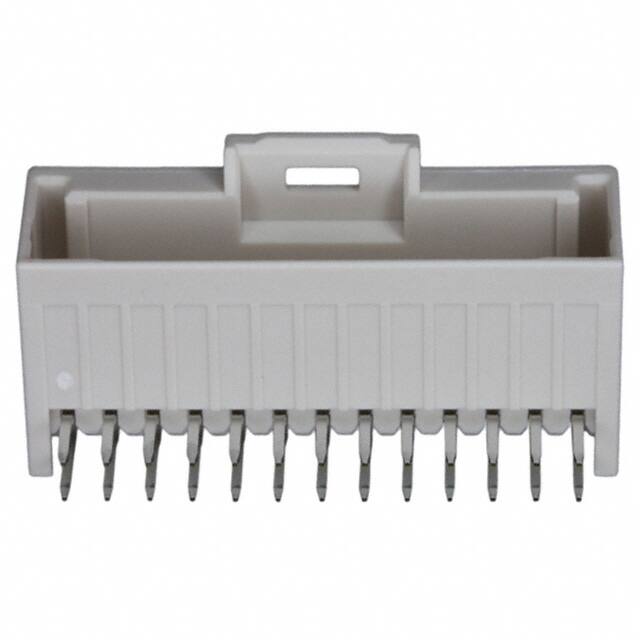

5018762640

Specifications

Din Conformance

NO

Montaj Tipi

Through Hole, Right Angle

Durability

30 Cycles

Parça Durumu

Active

Polarization Key

POLARIZED HOUSING

Ambalaj

Tray

Material Flammability Rating

UL94 V-0

Fabrika Tedarik Süresi

26 Weeks

Connector Type

Header

Insulation Color

Natural

Pcb Contact Pattern

RECTANGULAR

Pozisyon Sayısı

26

Number Of Conductors

ONE

Number Of Positions Loaded

All

Iec Conformance

NO

Pitch Mating

0.079 2.00mm

Contact Shape

Square

Contact Type

Male Pin

Filter Feature

NO

Style

Board to Cable/Wire

Body Depth

0.57 inch

Reliability

COMMERCIAL

Sıra Sayısı

2

Shrouding

Shrouded - 4 Wall

Mating Contact Pitch

0.079 inch

Fastening Type

Latch Holder

Dielectric Withstanding Voltage

1000VAC V

Insulation Resistance

1000000000Ohm

Insulation Materials

Polyamide (PA66), Nylon 6/6, Glass Filled

Rated Current Signal

1A

Contact Finish Mating

Tin

RoHS Durumu

ROHS3 Compliant

Additional Feature

IGRID, POLARIZED

Applications

Automotive, General Purpose, Industrial, Medical, Telecommunications

Mil Conformance

NO

Operating Temperature Max

85°C

Contact Length Post

0.126 3.20mm

Row Spacing Mating

0.079 (2.00mm)

Seri

iGrid 501876

Number Of Pcb Rows

2
