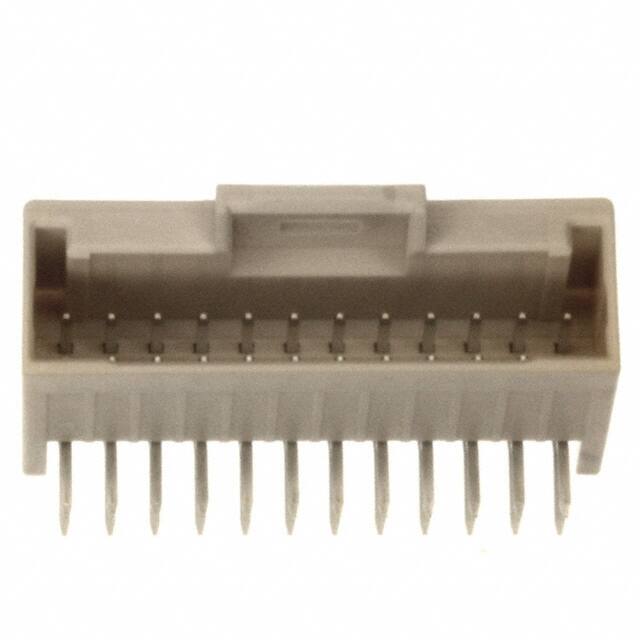

5018762440

Specifications

Operating Temperature Max

85°C

Contact Finish Mating

Tin

Insulation Resistance

1000000000Ohm

Reliability

COMMERCIAL

Dielectric Withstanding Voltage

1000VAC V

Terminal

Solder

Mounting Option1

LOCKING

Reference Standard

UL

Contact Materials

Brass

Mixed Contacts

NO

Seri

iGrid 501876

Contact Length Post

0.126 3.20mm

Row Spacing Mating

0.079 (2.00mm)

Number Of Pcb Rows

2

Material Flammability Rating

UL94 V-0

Ambalaj

Tray

Din Conformance

NO

Style

Board to Cable/Wire

Pitch Mating

0.079 2.00mm

Contact Shape

Square

Filter Feature

NO

Number Of Positions Loaded

All

Pcb Contact Pattern

RECTANGULAR

Mil Conformance

NO

Applications

Automotive, General Purpose, Industrial, Medical, Telecommunications

Ul Flammability Code

94V-0

JESD-609 Kodu

e3

RoHS Durumu

ROHS3 Compliant

Rated Current Signal

1A

Insulation Materials

Polyamide (PA66), Nylon 6/6, Glass Filled

Fastening Type

Latch Holder

Shrouding

Shrouded - 4 Wall

Sıra Sayısı

2

Mating Contact Pitch

0.079 inch

Nem Hassasiyeti (MSL)

1 (Unlimited)

Yayın Yılı

2005

Insulation Height

0.327 8.30mm

Kurşunsuz Kodu

yes

Fabrika Tedarik Süresi

21 Weeks

Durability

30 Cycles
