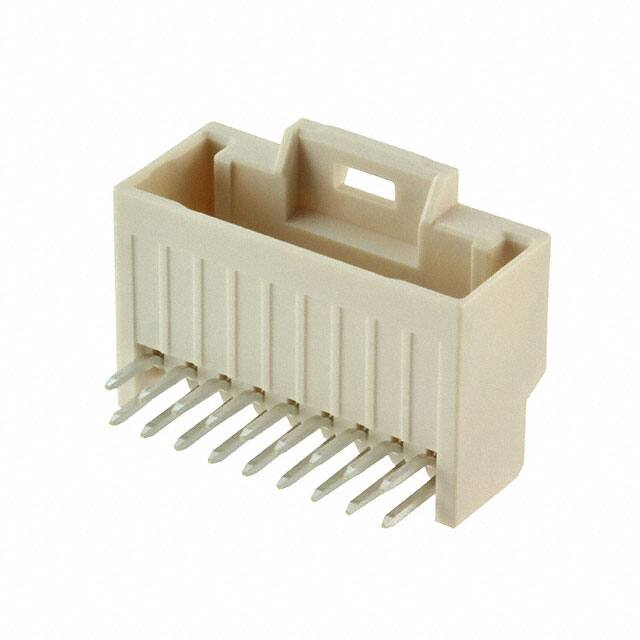

5018761840

Specifications

Maks. Çalışma Sıcaklığı

85°C

Insulation Materials

Polyamide (PA66), Nylon 6/6, Glass Filled

Fastening Type

Latch Holder

Sıra Sayısı

2

Shrouding

Shrouded - 4 Wall

Applications

Automotive, General Purpose, Industrial, Medical, Telecommunications

Voltage Rated Ac

250V

Glow Wire Compliant

Non-compliant

Orientation

Right Angle

Contact Finish Mating

Tin

RoHS Durumu

ROHS3 Compliant

Yayın Yılı

2005

Insulation Height

0.327 8.30mm

Row Spacing Mating

0.079 (2.00mm)

Seri

iGrid 501876

Contact Length Post

0.126 3.20mm

Montaj

Through Hole

Reach Svhc

No SVHC

Number Of Contacts

18

Terminal

Solder

Contact Materials

Brass

Nem Hassasiyeti (MSL)

1 (Unlimited)

Akım Değeri

2A

Ambalaj

Tray

Parça Durumu

Active

Montaj Tipi

Through Hole, Right Angle

Housing Material

Nylon

Fabrika Tedarik Süresi

21 Weeks

Kurşunsuz Kodu

yes

Material Flammability Rating

UL94 V-0

Max Voltage Rating Dc

250.25kV

Number Of Positions Loaded

All

Connector Type

Header

Contact Gender

Male

Insulation Color

Natural

Min. Çalışma Sıcaklığı

-25°C

Style

Board to Cable/Wire

Pitch Mating

0.079 2.00mm

Contact Shape

Square

Contact Type

Male Pin
