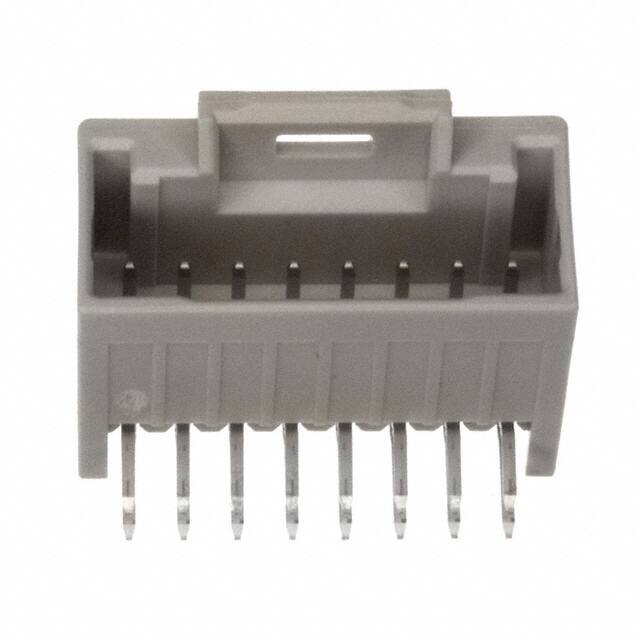

5018761640

Specifications

Contact Finish Mating

Tin

Additional Feature

IGRID, POLARIZED

Operating Temperature Max

85°C

Reliability

COMMERCIAL

Dielectric Withstanding Voltage

1000VAC V

Insulation Resistance

1000000000Ohm

Mounting Option1

LOCKING

Reference Standard

UL

Contact Materials

Brass

Terminal

Solder

Seri

iGrid 501876

Contact Length Post

0.126 3.20mm

Row Spacing Mating

0.079 (2.00mm)

Number Of Pcb Rows

2

HTS Kodu

8536.69.40.40

Mixed Contacts

NO

Material Flammability Rating

UL94 V-0

ECCN Kodu

EAR99

Din Conformance

NO

Ambalaj

Tray

Pitch Mating

0.079 2.00mm

Contact Shape

Square

Filter Feature

NO

Style

Board to Cable/Wire

Pcb Contact Pattern

RECTANGULAR

Number Of Positions Loaded

All

RoHS Durumu

ROHS3 Compliant

JESD-609 Kodu

e3

Applications

Automotive, General Purpose, Industrial, Medical, Telecommunications

Mil Conformance

NO

Shrouding

Shrouded - 4 Wall

Sıra Sayısı

2

Mating Contact Pitch

0.079 inch

Fastening Type

Latch Holder

Insulation Materials

Polyamide (PA66), Nylon 6/6, Glass Filled

Rated Current Signal

1A

Nem Hassasiyeti (MSL)

1 (Unlimited)

Yayın Yılı

2005

Insulation Height

0.327 8.30mm

Kurşunsuz Kodu

yes
