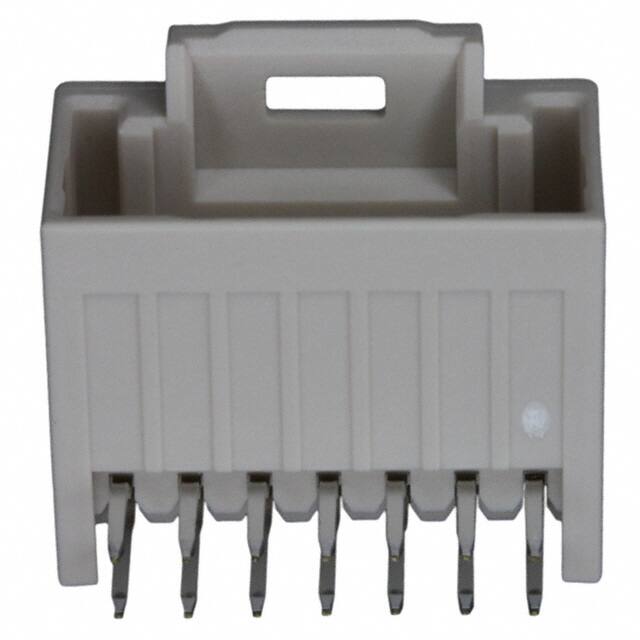

5018761440

Specifications

Connector Type

Header

Insulation Color

Natural

Pozisyon Sayısı

14

Number Of Positions Loaded

All

Number Of Conductors

ONE

Pitch Mating

0.079 2.00mm

Contact Shape

Square

Contact Type

Male Pin

Style

Board to Cable/Wire

Montaj Tipi

Through Hole, Right Angle

Durability

30 Cycles

Parça Durumu

Active

Ambalaj

Tray

Material Flammability Rating

UL94 V-0

Fabrika Tedarik Süresi

15 Weeks

ECCN Kodu

EAR99

Contact Length Post

0.126 3.20mm

Row Spacing Mating

0.079 (2.00mm)

Seri

iGrid 501876

Yayın Yılı

2005

HTS Kodu

8536.69.40.40

Insulation Height

0.327 8.30mm

Mounting Option1

LOCKING

Contact Materials

Brass

Nem Hassasiyeti (MSL)

1 (Unlimited)

Reference Standard

UL

Terminal

Solder

Reliability

COMMERCIAL

Mating Contact Pitch

0.079 inch

Shrouding

Shrouded - 4 Wall

Sıra Sayısı

2

Fastening Type

Latch Holder

Insulation Resistance

1000000000Ohm

Insulation Materials

Polyamide (PA66), Nylon 6/6, Glass Filled

Rated Current Signal

2A

Contact Finish Mating

Tin

RoHS Durumu

ROHS3 Compliant

Applications

Automotive, General Purpose, Industrial, Medical, Telecommunications

Operating Temperature Min

-40°C

Operating Temperature Max

105°C
