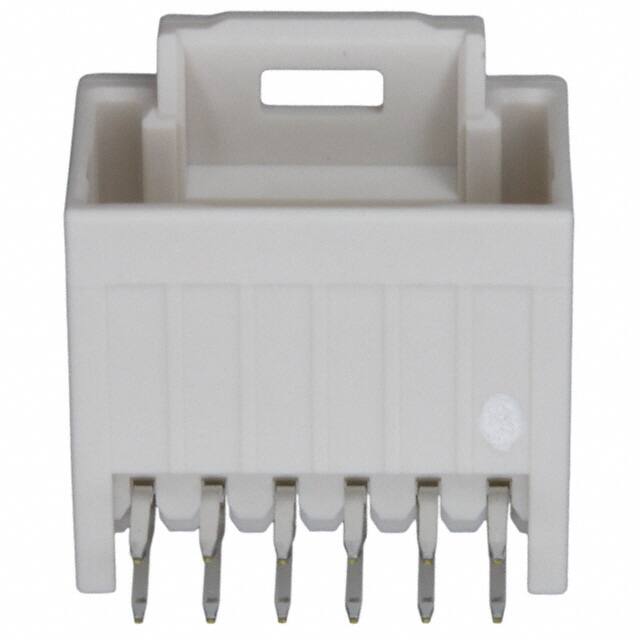

5018761240

Specifications

Terminal

Solder

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Materials

Brass

Insulation Height

0.327 8.30mm

Mixed Contacts

NO

HTS Kodu

8536.69.40.40

Yayın Yılı

2005

Contact Length Post

0.126 3.20mm

Row Spacing Mating

0.079 (2.00mm)

Seri

iGrid 501876

Operating Temperature Max

105°C

Operating Temperature Min

-40°C

Ul Flammability Code

94V-0

Mil Conformance

NO

Additional Feature

IGRID, POLARIZED

Applications

Automotive, General Purpose, Industrial, Medical, Telecommunications

JESD-609 Kodu

e3

RoHS Durumu

ROHS3 Compliant

Contact Finish Mating

Tin

Insulation Materials

Polyamide (PA66), Nylon 6/6, Glass Filled

Fastening Type

Latch Holder

Shrouding

Shrouded - 4 Wall

Sıra Sayısı

2

Style

Board to Cable/Wire

Filter Feature

NO

Contact Type

Male Pin

Pitch Mating

0.079 2.00mm

Contact Shape

Square

Iec Conformance

NO

Number Of Positions Loaded

All

Pozisyon Sayısı

12

Insulation Color

Natural

Connector Type

Header

ECCN Kodu

EAR99

Fabrika Tedarik Süresi

26 Weeks

Material Flammability Rating

UL94 V-0

Ambalaj

Tray

Parça Durumu

Active

Montaj Tipi

Through Hole, Right Angle

Din Conformance

NO
