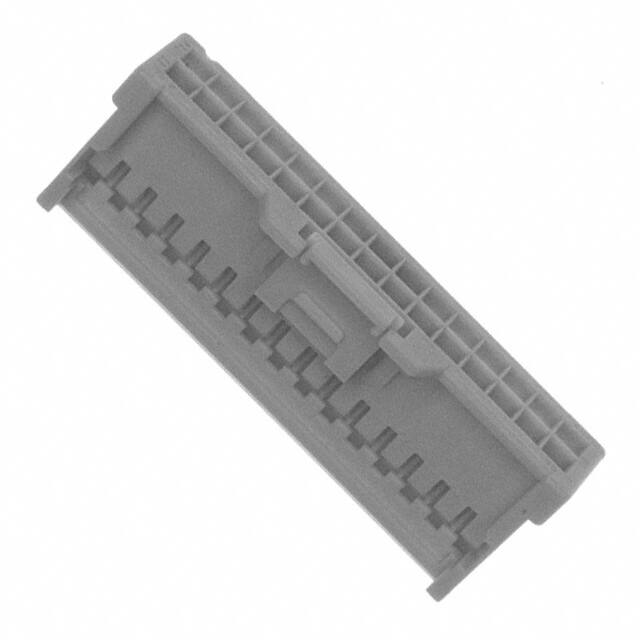

5016463000

Specifications

Fastening Type

Latch Lock

Operating Temperature Max

85°C

Mounting Option1

LOCKING

Parça Durumu

Active

Insulation Diametermin

0.033 inch

ECCN Kodu

EAR99

Insulation Materials

NYLON

Pozisyon Sayısı

30

Row Spacing

0.079 (2.00mm)

Contact Termination

Crimp

Note

Contacts Not Included

Contact Type

Female Socket

Nem Hassasiyeti (MSL)

1 (Unlimited)

Fabrika Tedarik Süresi

13 Weeks

Pitch

0.079 2.00mm

Ambalaj

Bulk

Total Number Of Contacts

30

Seri

iGrid 501646

HTS Kodu

8536.69.40.40

Reference Standard

UL

Montaj Tipi

Free Hanging (In-Line)

Insulation Resistance

1000000000Ohm

Sıra Sayısı

2

Renk

Natural

RoHS Durumu

ROHS3 Compliant

Rated Current Signal

2A

Polarization Key

POLARIZED HOUSING

Connector Type

Receptacle

Body Depth

0.435 inch

Dielectric Withstanding Voltage

1000VAC V

Reliability

COMMERCIAL
