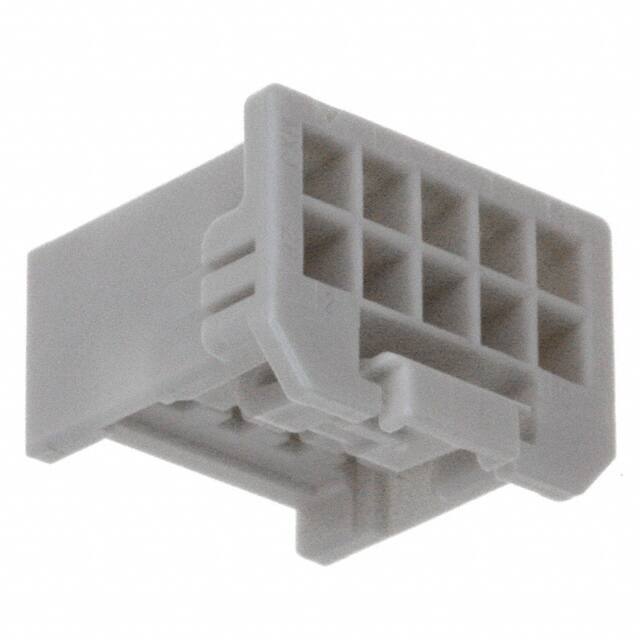

5016461000

Specifications

Body Depth

0.435 inch

Reliability

COMMERCIAL

Polarization Key

POLARIZED HOUSING

Connector Type

Receptacle

Rated Current Signal

2A

Option

GENERAL PURPOSE

Iec Conformance

NO

RoHS Durumu

ROHS3 Compliant

Sıra Sayısı

2

Renk

Natural

Montaj Tipi

Free Hanging (In-Line)

Reference Standard

UL

Seri

iGrid 501646

Total Number Of Contacts

10

Ambalaj

Bulk

Ul Flammability Code

94V-0

Fabrika Tedarik Süresi

15 Weeks

Nem Hassasiyeti (MSL)

1 (Unlimited)

Pitch

0.079 2.00mm

Note

Contacts Not Included

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Contact Finish Mating

NOT SPECIFIED

Contact Type

Female Socket

Row Spacing

0.079 (2.00mm)

Contact Termination

Crimp

Pozisyon Sayısı

10

Filter Feature

NO

Insulation Materials

NYLON

Contact Materials

NOT SPECIFIED

Mixed Contacts

NO

Mil Conformance

NO

Insulation Diametermin

0.033 inch

Parça Durumu

Active

Din Conformance

NO

Kurşunsuz Kodu

yes

Operating Temperature Max

85°C

Mounting Option1

LOCKING

Yayın Yılı

2005

Fastening Type

Latch Lock
