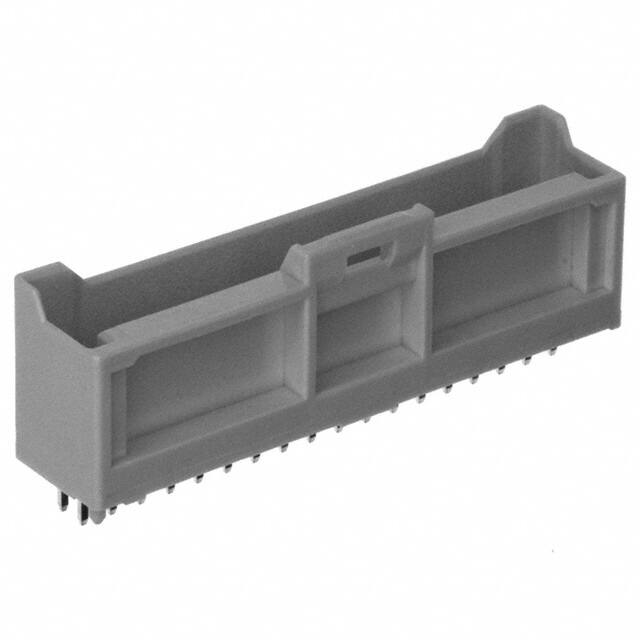

5016453620

Specifications

Seri

iGrid 501645

JESD-609 Kodu

e3

Ul Flammability Code

94V-0

Material Flammability Rating

UL94 V-0

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Type

Male Pin

Row Spacing Mating

0.079 (2.00mm)

Dielectric Withstanding Voltage

1400VAC V

Body Depth

0.453 inch

Rated Current Signal

2A

Iec Conformance

NO

Board Mounting Option

PEG

Shrouding

Shrouded - 4 Wall

Insulation Resistance

1000000000Ohm

Style

Board to Cable/Wire

Mil Conformance

NO

Parça Durumu

Active

Din Conformance

NO

Pcb Contact Pattern

RECTANGULAR

Operating Temperature Max

85°C

Fastening Type

Latch Holder

Özellikler

Board Guide

Body Length Or Diameter

1.496 inch

Contact Materials

Brass

Mating Contact Pitch

0.079 inch

Ambalaj

Tray

Fabrika Tedarik Süresi

6 Weeks

Durability

30 Cycles

Contact Finish Mating

Tin

Reliability

COMMERCIAL

Terminal

Solder

Polarization Key

POLARIZED HOUSING

Connector Type

Header

Number Of Pcb Rows

2

Insulation Height

0.472 12.00mm

RoHS Durumu

ROHS3 Compliant

Number Of Conductors

ONE

Sıra Sayısı

2

Insulation Color

Natural

Montaj Tipi

Through Hole
