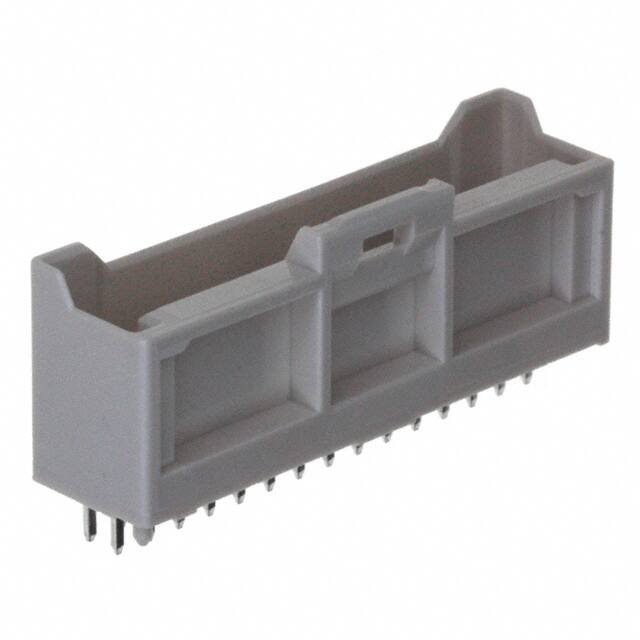

5016453020

Specifications

Ambalaj

Tray

Nem Hassasiyeti (MSL)

1 (Unlimited)

Material Flammability Rating

UL94 V-0

Fabrika Tedarik Süresi

6 Weeks

Seri

iGrid 501645

Row Spacing Mating

0.079 (2.00mm)

Contact Type

Male Pin

Contact Finish Mating

Tin

Insulation Height

0.472 12.00mm

RoHS Durumu

ROHS3 Compliant

Terminal

Solder

Connector Type

Header

Montaj Tipi

Through Hole

Pitch Mating

0.079 2.00mm

Style

Board to Cable/Wire

Shrouding

Shrouded - 4 Wall

Sıra Sayısı

2

Insulation Color

Natural

Contact Shape

Square

Parça Durumu

Active

Contact Length Post

0.126 3.20mm

Fastening Type

Latch Holder

Kurşunsuz Kodu

yes

Number Of Positions Loaded

All

Özellikler

Board Guide

Contact Materials

Brass

Applications

Automotive, General Purpose, Industrial, Medical, Telecommunications

Pozisyon Sayısı

30

Insulation Materials

Polyamide (PA66), Nylon 6/6, Glass Filled
