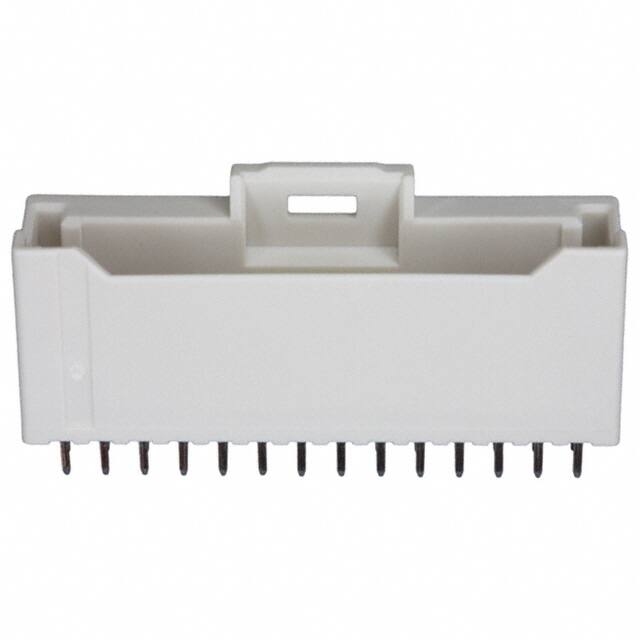

5016452820

Specifications

Yayın Yılı

2005

Fastening Type

Latch Holder

Kurşunsuz Kodu

yes

Operating Temperature Max

85°C

Pcb Contact Pattern

RECTANGULAR

Din Conformance

NO

Parça Durumu

Active

Mil Conformance

NO

Contact Materials

Brass

Body Length Or Diameter

1.181 inch

Özellikler

Board Guide

Row Spacing Mating

0.079 (2.00mm)

Contact Type

Male Pin

Nem Hassasiyeti (MSL)

1 (Unlimited)

Material Flammability Rating

UL94 V-0

Ul Flammability Code

94V-0

JESD-609 Kodu

e3

Seri

iGrid 501645

Style

Board to Cable/Wire

Insulation Resistance

1000000000Ohm

Shrouding

Shrouded - 4 Wall

Board Mounting Option

PEG

Iec Conformance

NO

Rated Current Signal

2A

Body Depth

0.453 inch

Dielectric Withstanding Voltage

1400VAC V

Mounting Option1

LOCKING

Contact Shape

Square

Contact Length Post

0.126 3.20mm

Mixed Contacts

NO

Applications

Automotive, General Purpose, Industrial, Medical, Telecommunications

Filter Feature

NO

Insulation Materials

Polyamide (PA66), Nylon 6/6, Glass Filled

Pozisyon Sayısı

28

Number Of Positions Loaded

All

Contact Finish Mating

Tin

Durability

30 Cycles

Fabrika Tedarik Süresi

6 Weeks

Ambalaj

Tray

Mating Contact Pitch

0.079 inch
