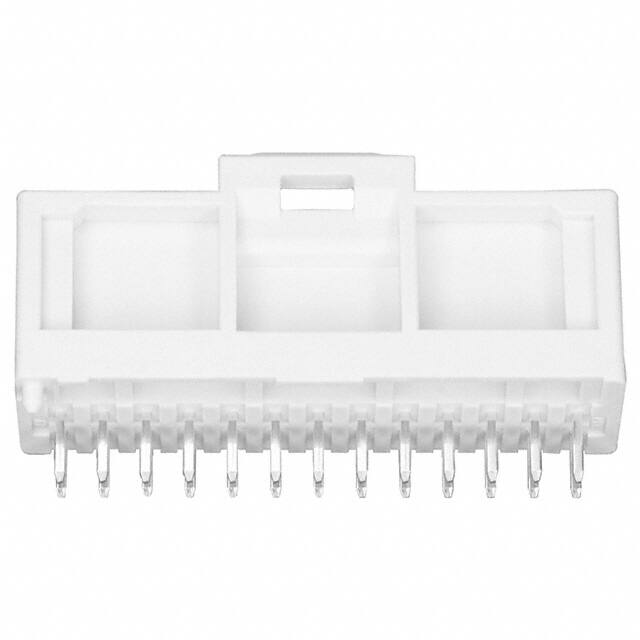

5016452620

Specifications

Nem Hassasiyeti (MSL)

1 (Unlimited)

Material Flammability Rating

UL94 V-0

Fabrika Tedarik Süresi

5 Weeks

Ambalaj

Tray

Seri

iGrid 501645

Row Spacing Mating

0.079 (2.00mm)

Contact Finish Mating

Tin

Contact Type

Male Pin

Insulation Height

0.472 12.00mm

RoHS Durumu

ROHS3 Compliant

Connector Type

Header

Terminal

Solder

Style

Board to Cable/Wire

Pitch Mating

0.079 2.00mm

REACH Uyumluluk Kodu

unknown

Montaj Tipi

Through Hole

Insulation Color

Natural

Sıra Sayısı

2

Shrouding

Shrouded - 4 Wall

Contact Shape

Square

Contact Length Post

0.126 3.20mm

Parça Durumu

Active

Fastening Type

Latch Holder

Yayın Yılı

2005

Kurşunsuz Kodu

yes

Number Of Positions Loaded

All

Özellikler

Board Guide

Applications

Automotive, General Purpose, Industrial, Medical, Telecommunications

Contact Materials

Brass

Insulation Materials

Polyamide (PA66), Nylon 6/6, Glass Filled

Pozisyon Sayısı

26
