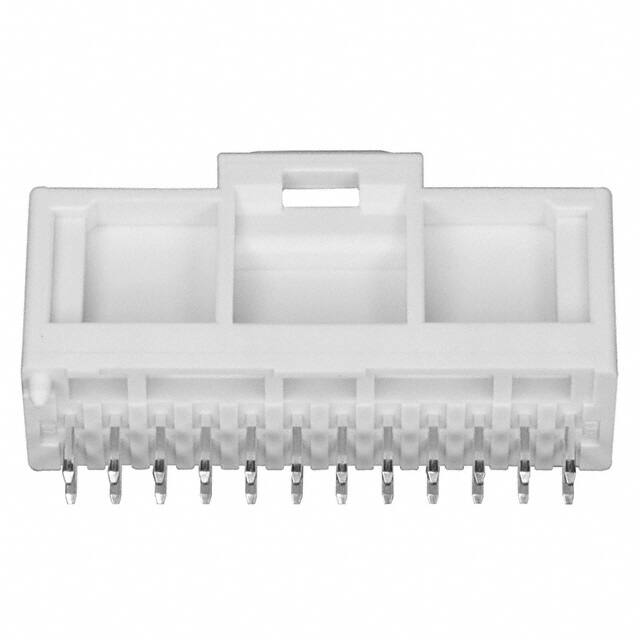

5016452420

Specifications

Row Spacing Mating

0.079 (2.00mm)

Montaj

Through Hole

Voltage Rated Dc

250V

Contact Type

Male Pin

Max Voltage Rating Ac

250V

Contact Finish Mating

Tin

Nem Hassasiyeti (MSL)

1 (Unlimited)

Material Flammability Rating

UL94 V-0

Fabrika Tedarik Süresi

5 Weeks

Maks. Çalışma Sıcaklığı

85°C

Ambalaj

Tray

Housing Material

Polyamide

Seri

iGrid 501645

Uzunluk

26mm

Style

Board to Cable/Wire

Pitch Mating

0.079 2.00mm

Lead Pitch

2mm

REACH Uyumluluk Kodu

unknown

Orientation

Vertical

Montaj Tipi

Through Hole

Akım Değeri

2A

Min. Çalışma Sıcaklığı

-25°C

Shrouding

Shrouded - 4 Wall

Sıra Sayısı

2

RoHS Durumu

ROHS3 Compliant

Insulation Height

0.472 12.00mm

Terminal

Solder

Connector Type

Header

Max Voltage Rating Dc

250.25kV

Fastening Type

Latch Holder

Yayın Yılı

2005

Kurşunsuz Kodu

yes

Contact Shape

Square

Contact Length Post

0.126 3.20mm

Parça Durumu

Active

Number Of Contacts

24

Glow Wire Compliant

Non-compliant

Depth

8.2mm

Contact Materials

Brass

Applications

Automotive, General Purpose, Industrial, Medical, Telecommunications
