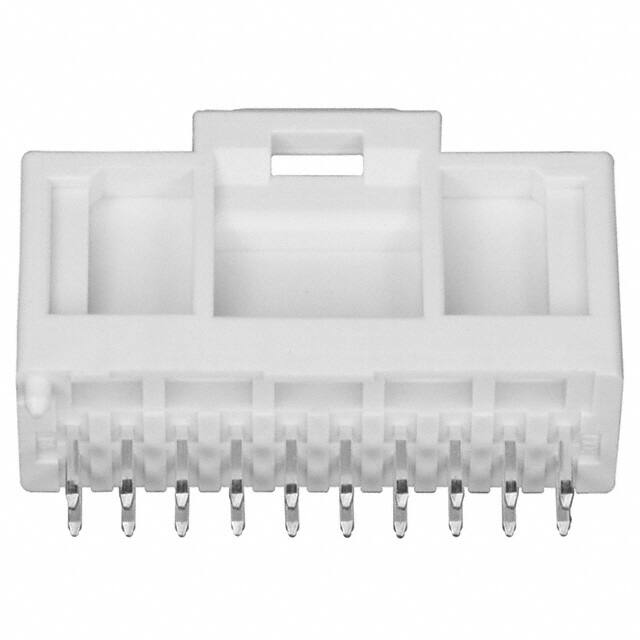

5016452020

Specifications

Insulation Materials

Polyamide (PA66), Nylon 6/6, Glass Filled

Housing Color

Natural

Depth

8.2mm

Applications

Automotive, General Purpose, Industrial, Medical, Telecommunications

Contact Materials

Brass

Özellikler

Board Guide

Voltage Rated Ac

250V

Number Of Positions Loaded

All

Kurşunsuz Kodu

yes

Max Voltage Rating Dc

250.25kV

Yayın Yılı

2005

Fastening Type

Latch Holder

Contact Length Post

0.126 3.20mm

Parça Durumu

Active

Number Of Contacts

20

Glow Wire Compliant

Non-compliant

Contact Shape

Square

Min. Çalışma Sıcaklığı

-25°C

Shrouding

Shrouded - 4 Wall

Sıra Sayısı

2

Pitch Mating

0.079 2.00mm

Style

Board to Cable/Wire

Akım Değeri

2A

Montaj Tipi

Through Hole

Orientation

Vertical

Lead Pitch

2mm

Terminal

Solder

Connector Type

Header

RoHS Durumu

ROHS3 Compliant

Insulation Height

0.472 12.00mm

Voltage Rated Dc

250V

Contact Type

Male Pin

Contact Finish Mating

Tin

Max Voltage Rating Ac

250V

Row Spacing Mating

0.079 (2.00mm)

Montaj

Through Hole

Radyasyon Dayanımı

No

Housing Material

Polyamide

Seri

iGrid 501645

Uzunluk

22mm
