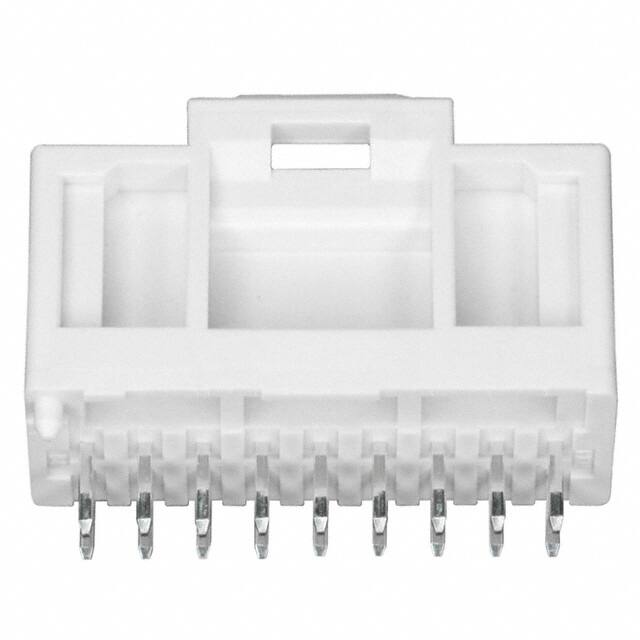

5016451820

Specifications

Contact Finish Mating

Tin

Fabrika Tedarik Süresi

5 Weeks

Durability

30 Cycles

Mating Contact Pitch

0.079 inch

Ambalaj

Tray

Insulation Color

Natural

Number Of Conductors

ONE

Sıra Sayısı

2

Reference Standard

UL

Pitch Mating

0.079 2.00mm

Montaj Tipi

Through Hole

Terminal

Solder

Number Of Pcb Rows

2

Connector Type

Header

Polarization Key

POLARIZED HOUSING

Reliability

COMMERCIAL

RoHS Durumu

ROHS3 Compliant

Insulation Height

0.472 12.00mm

Mounting Option1

LOCKING

Contact Length Post

0.126 3.20mm

Contact Shape

Square

Insulation Materials

Polyamide (PA66), Nylon 6/6, Glass Filled

Filter Feature

NO

Pozisyon Sayısı

18

Mixed Contacts

NO

Applications

Automotive, General Purpose, Industrial, Medical, Telecommunications

Number Of Positions Loaded

All

Contact Type

Male Pin

Row Spacing Mating

0.079 (2.00mm)

JESD-609 Kodu

e3

Seri

iGrid 501645

Nem Hassasiyeti (MSL)

1 (Unlimited)

Material Flammability Rating

UL94 V-0

Ul Flammability Code

94V-0

Shrouding

Shrouded - 4 Wall

Style

Board to Cable/Wire

Insulation Resistance

1000000000Ohm

Body Depth

0.453 inch

Dielectric Withstanding Voltage

1400VAC V

Board Mounting Option

PEG
