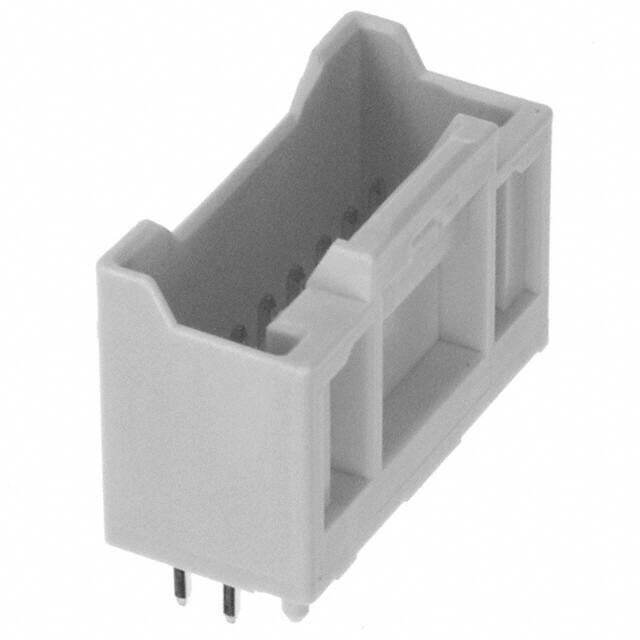

5016451620

Specifications

Contact Materials

Brass

Body Length Or Diameter

0.709 inch

Özellikler

Board Guide

Fastening Type

Latch Holder

Yayın Yılı

2005

Kurşunsuz Kodu

yes

Pcb Contact Pattern

RECTANGULAR

Operating Temperature Max

105°C

Din Conformance

NO

Parça Durumu

Active

Mil Conformance

NO

Style

Board to Cable/Wire

Insulation Resistance

1000000000Ohm

Shrouding

Shrouded - 4 Wall

Iec Conformance

NO

Board Mounting Option

PEG

Rated Current Signal

2A

Dielectric Withstanding Voltage

1400VAC V

Row Spacing Mating

0.079 (2.00mm)

Contact Type

Male Pin

Nem Hassasiyeti (MSL)

1 (Unlimited)

Material Flammability Rating

UL94 V-0

Ul Flammability Code

94V-0

JESD-609 Kodu

e3

Seri

iGrid 501645

Mixed Contacts

NO

Applications

Automotive, General Purpose, Industrial, Medical, Telecommunications

Filter Feature

NO

Insulation Materials

Polyamide (PA66), Nylon 6/6, Glass Filled

Pozisyon Sayısı

16

Number Of Positions Loaded

All

Mounting Option1

LOCKING

Contact Shape

Square

Contact Length Post

0.126 3.20mm

Reference Standard

UL

Pitch Mating

0.079 2.00mm

Montaj Tipi

Through Hole

Insulation Color

Natural

Sıra Sayısı

2

Number Of Conductors

ONE
