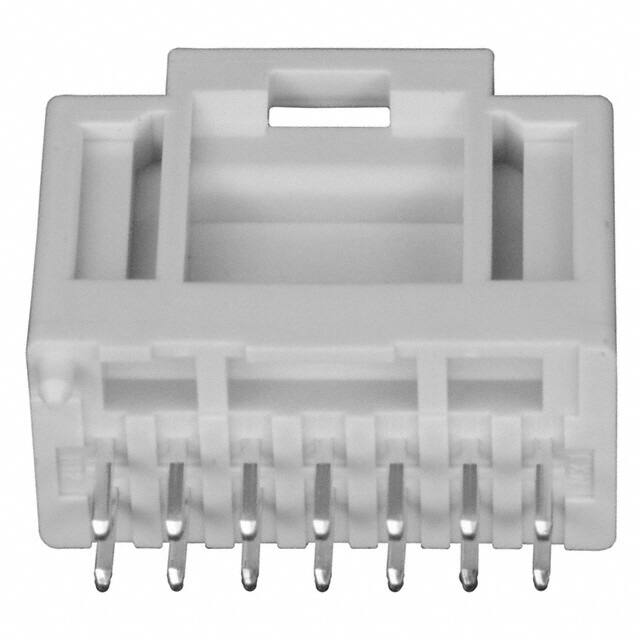

5016451420

Specifications

Özellikler

Board Guide

Contact Materials

Brass

Mil Conformance

NO

Parça Durumu

Active

Din Conformance

NO

Operating Temperature Max

85°C

Pcb Contact Pattern

RECTANGULAR

Kurşunsuz Kodu

yes

Yayın Yılı

2005

Fastening Type

Latch Holder

Rated Current Signal

2A

Board Mounting Option

PEG

Iec Conformance

NO

Shrouding

Shrouded - 4 Wall

Insulation Resistance

1000000000Ohm

Style

Board to Cable/Wire

Seri

iGrid 501645

JESD-609 Kodu

e3

Ul Flammability Code

94V-0

Nem Hassasiyeti (MSL)

1 (Unlimited)

Material Flammability Rating

UL94 V-0

Contact Type

Male Pin

Row Spacing Mating

0.079 (2.00mm)

Number Of Positions Loaded

All

Pozisyon Sayısı

14

Insulation Materials

Polyamide (PA66), Nylon 6/6, Glass Filled

Filter Feature

NO

Applications

Automotive, General Purpose, Industrial, Medical, Telecommunications

Mixed Contacts

NO

Contact Length Post

0.126 3.20mm

Contact Shape

Square

Mounting Option1

LOCKING

Reliability

COMMERCIAL

Terminal

Solder

Polarization Key

POLARIZED HOUSING

Connector Type

Header

Number Of Pcb Rows

2

RoHS Durumu

ROHS3 Compliant

Insulation Height

0.472 12.00mm

Number Of Conductors

ONE
